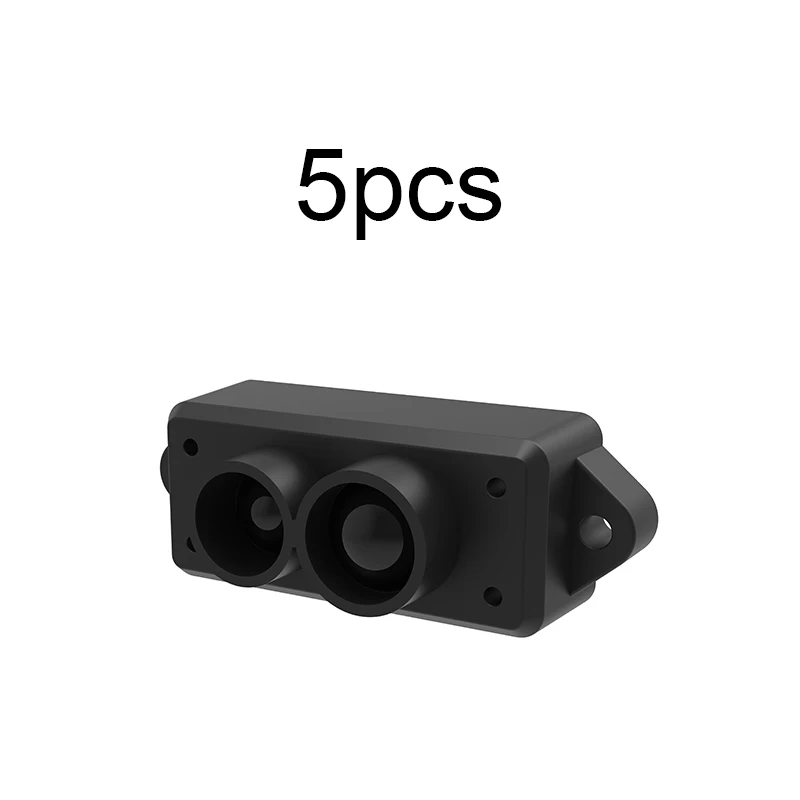

5PCS Benewake TFmini S Lidar Single Point Module Ranging Laser Sensor Support UART I2C I/O Communication Interface | Электроника







Description: TFmini-S has the advantages of low cost, small volume and low power consumption, and multiple interfaces to meet different requirements. TFmini is a milestone for Benewake to promote the process of low cost LiDAR. It has unique optical, structural and electronic designs. As an upgraded version, TFmini-S is based on the extensive experience of TFmini. While still small and light, it has higher performance and is suitable for much more applications.



Features



 TFmini-S 12m cost-effective distance sensor



TFmini-S products adhere to the application-oriented attitude: simple appearance,powerful functions.it can meet your needs in daily smart goods.





Tiny Body Yet Big Wisdom



TFmini-S is still lightweight:

1. the blind zone is reduced to 10cm;

2. fearless ambient light;

3. frame rate up to 1000Hz;

4. UART,IIC,IO communication interface switching.





Low Power Yet High Frame Rate



In low power consumption mode, the maximum power consumption can be lower than 100mW, reducing system power consumption and further prolonging LiDAR lifetime.









Specifications



 Description   Parameter value  Product performance        Operating range 0.1m~12m@90% reflectivity  Accuracy

±6cm@(0.1-6m)

±1%@(6m-12m)

 Distance resolution  1cm  Frame rate    100Hz   Ambient light immunity  70Klux  Operation temperature    0℃~60℃  Enclose rating    /     Optical
parameters  Light source  VCSEL  Central wavelength    850nm  Photobiological safety    Class1 (IEC60825)  FOV    2°  Electrical
parameters Supply voltage  5V Average current  ≤140mA Power consumption  ≤0.7W Peak current  800mA Communication level  LVTTL(3.3V) Communication interface  UART / I2C    Others Dimension  42mm*15mm*16mm (L*W*H)  Housing  ABS+PC cable length 10cm Weight   5g





Application

Packing
