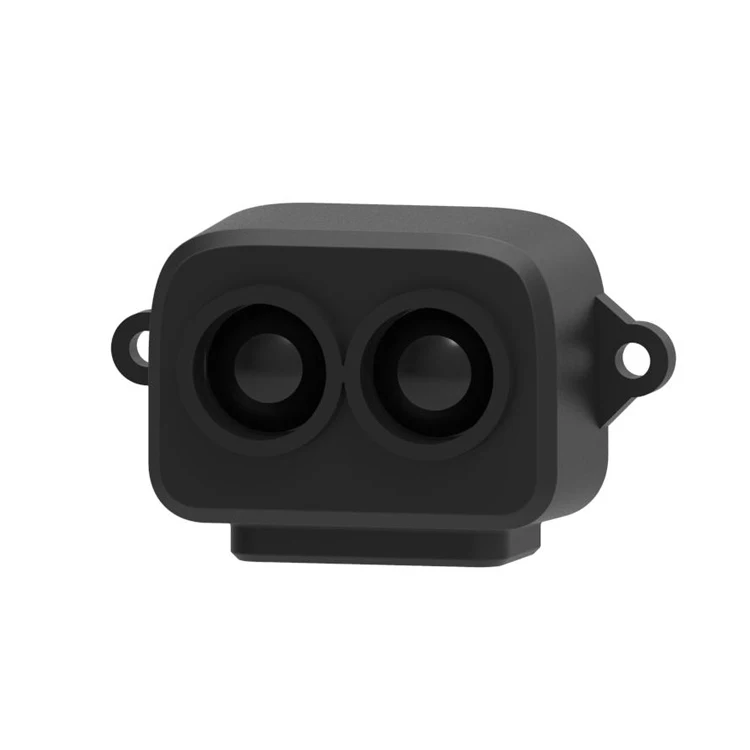

Benewake TF-Luna Lidar Range Finder Sensor Module Single-Point Micro Ranging Laser | Электроника





Description: TF-Luna is a single-point ranging LiDAR, based on TOF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement. The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.





Features: The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.









Extreme Cost Performance

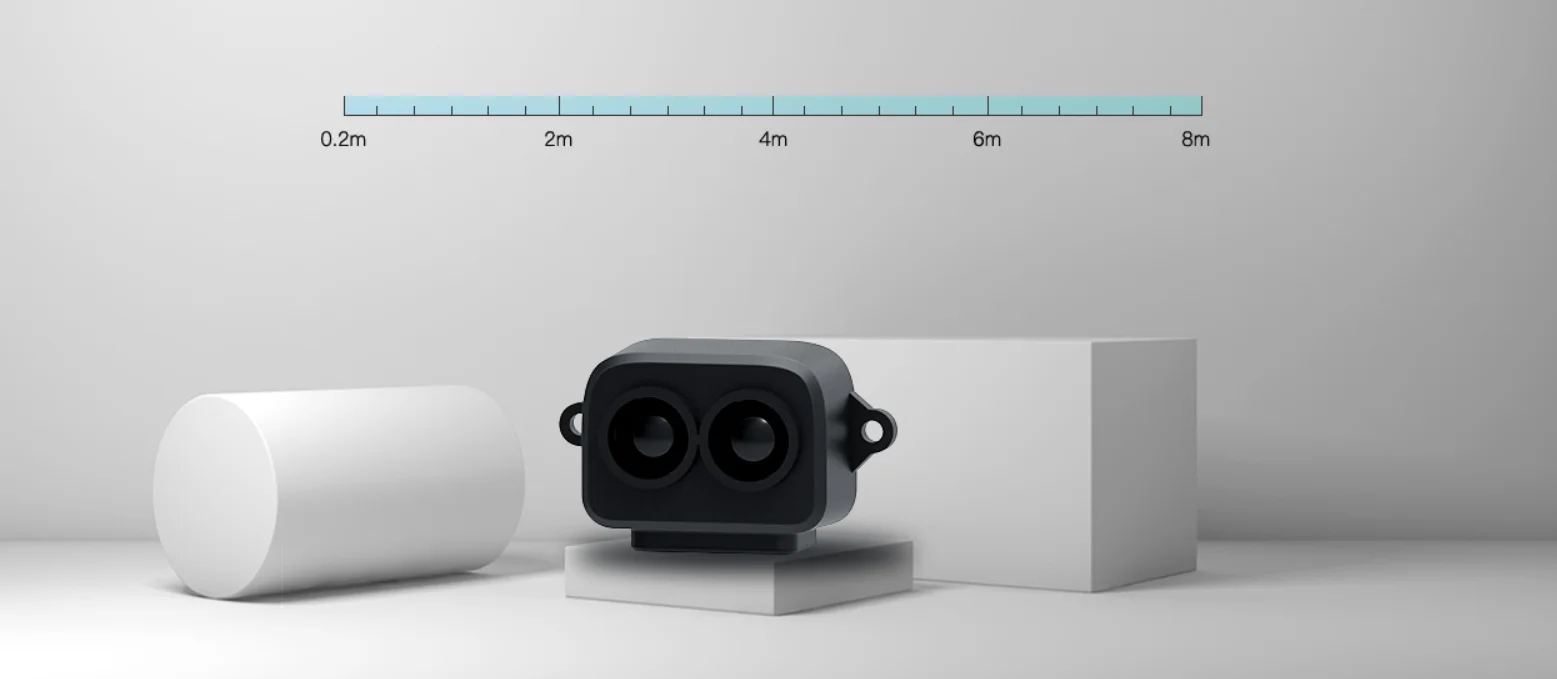

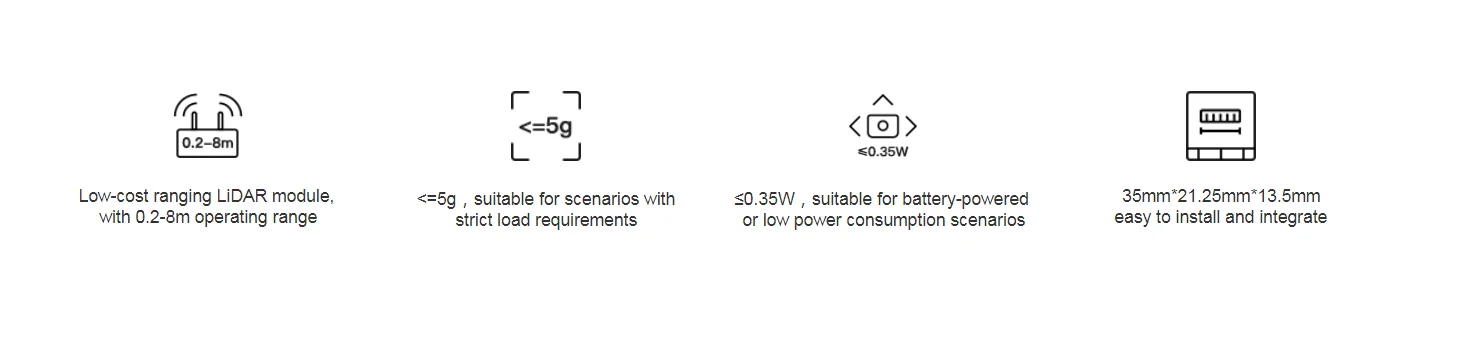

Low-cost ranging LiDAR module, with 0.2-8m operating range. TF-Luna has a highly stable, accurate, sensitive range detection.

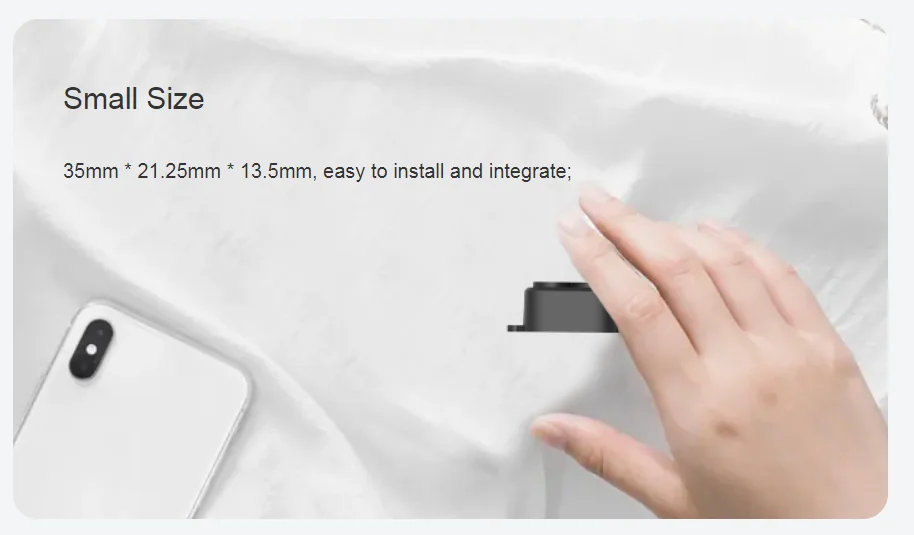

Slim Figure Yet Big Skill



The product is built with algorithms adapted to various application environments and adopts multiple adjustable configurations and parameters so as to offer excellent distance measurement performances in complex application fields and scenarios.





Parameter





 Description   Parameter value  Product performance        Operating range  0.2m~8m(90%reflectivity indoor 0klux) 1
0.2m~2.5m(10%reflectivity indoor 0klux) 2
0.2m~8m(90%reflectivity outdoor 90klux)
0.2m~2.5m(10%reflectivity outdoor 90klux)  Accuracy  ±6cm@(0.2m-3m) 3
±2%@(3m-8m)  Distance resolution  1cm  Frame rate    1-250Hz   Ambient light immunity  70Klux  Operation temperature    -10℃~60℃  Enclose rating    /     Optical
parameters  Light source  VCSEL  Central wavelength    850nm  Photobiological safety    Class1 (IEC60825)  FOV    2°  Electrical
parameters Supply voltage  3.7V-5.2V Average current  ≤70mA Power consumption  ≤0.35W Peak current  150mA Communication level  LVTTL(3.3V) Communication interface  UART / I2C    Others Dimension  35mm*21.25mm*12.5mm (L*W*H)  Housing  ABS+PC  Storage temperature   -20℃~75℃ Weight   <5g



Application
