body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Description:It is especially designed for vehicle without speeeter, engine temperature gauge, oil thermometer, boost gauge and fuel consumption meter.can also monitor and display battery voltage, engine charging voltage, overspeed alarm, engine temperature warning.It can even read the real-time data stream, scan and clear trouble code.

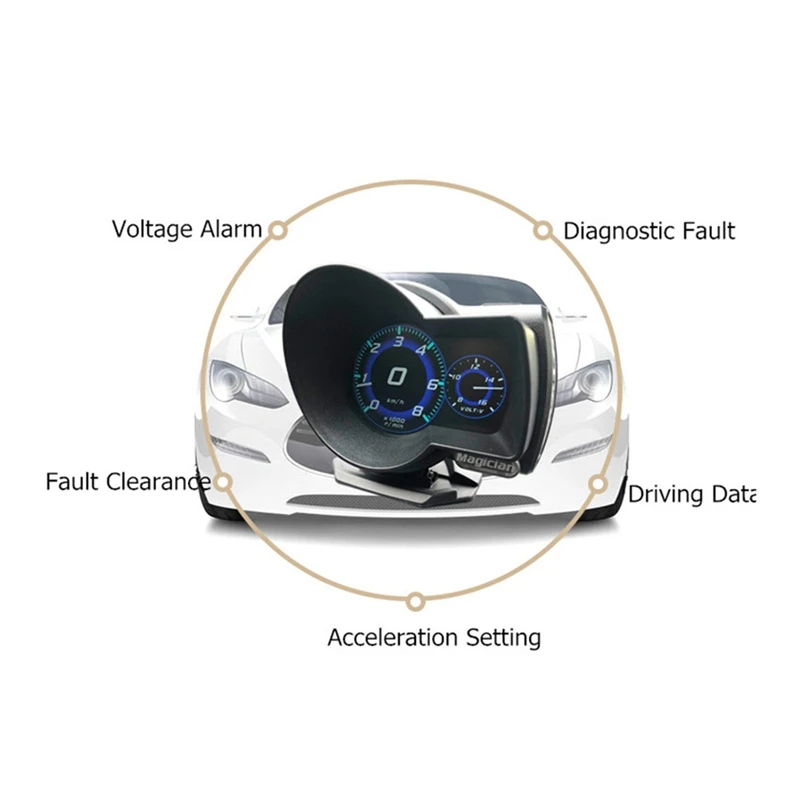

Warning function:Supports water temperature warning, over-speed alarm, shifting reminding, vehicle malfunction warning for safe and secure driving.Trouble code clearing: Supports code scanning and general code clearing.
Installation: 1.Find the car's OBD data interface, the common interface is located under the driver's side dashboard. 2.Start the vehicle and keep the engine running. 3.Connect the vehicle OBD interface to the meter with the OBD cable. 4.The product displays the boot animation, recognizes the protocol, and then the meter starts to display normally
5.Fixed the product and hides the trace and the installation is completed. Supported vehicles:For petrol vehicles with standard OBD-II protocol, especially for vehicles without water gauge, speeeter and fuel consumption meter.
Specifications:Operating voltage: 10-18V DC; Operating current: less than80mA; Sleep current: less than15mA
Operating temperature: -20 - 75℃
Dimensions: 60mm X 50mm X 67mm
Hardware:
CPU based on 32 bit ARM CORTEX-M3 kernel.
Maximum operating frequency: 72MHz
Supports multiple high speed auto communication protocols

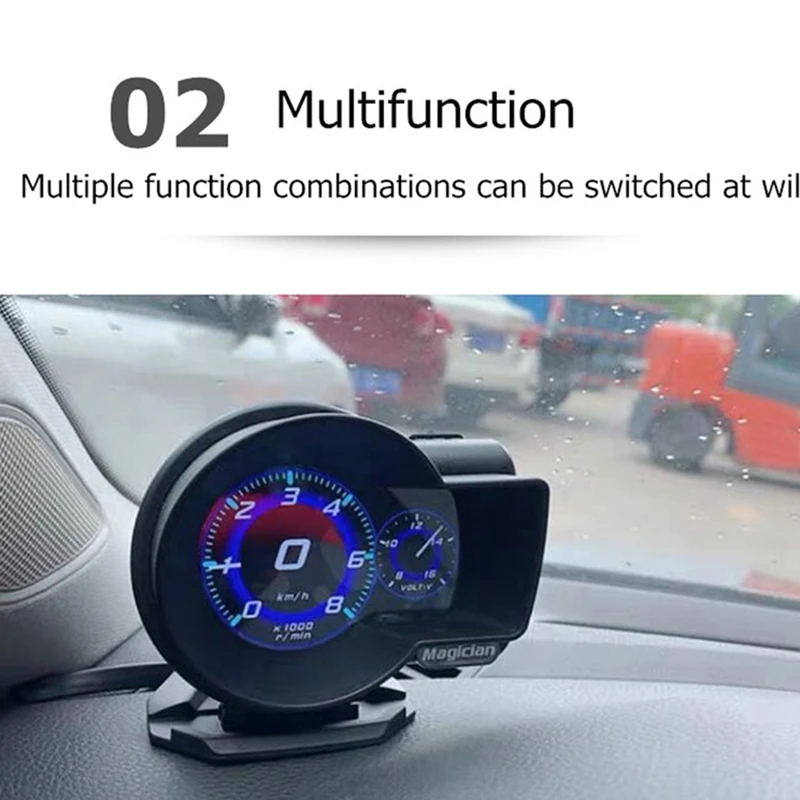

Function Item
Function1:SPEED AVG /SPEED/TACHO/RPM
Function2:INTAKE AIR T./COMMON R.P/THROTTLE P.
Function3:ACC P.B/ACC P.C/ACC P.D/ACC P.E/ACC P.F/ACC P.P.
Function4:IGNITION T./ENGINE LOAD/SHORT TRIM/LONG TRIM
Function5:O2 B1 S1/O2 B1 S2/O2 B1 S3/EXHAUST G.R
Function6:FUEL LEVEL/BARO/FUEL C./FUEL C;AVG/OUTSIDE T.
Function7:OTL P./FUEL P./OIL T./WATER T.
Function8:EXT T./VOLT/CLOCK/ENGINE RUN T./AIR FLOW
Default alert value
Meter Defaults MIN MAX UNIT ALARM IND.Output
TACHO/RPM 6000 0 9000 RPM greater than equal Setting ON
Shifting Value 5000 0 9000 RPM greater than equal Setting ON
SPEED 120 0 400 Km/h greater than equal Setting ON
VOLT. 11 8 18 V less than equal Setting ON
WATER T. 105 -40 140 ℃ greater than equal Setting ON
OIL T. 115 -40 140 ℃ greater than equal Setting ON
TURBE/AIR P. 120 -100 200 Kpa greater than equal Setting ON
OIL P. 50 0 1000 Kpa less than equal Setting ON
FUEL P. 50 0 600 Kpa less than equal Setting ON
EXT T. 950 0 1100 ℃ greater than equal Setting ON
Colour: Black
Material: ABS

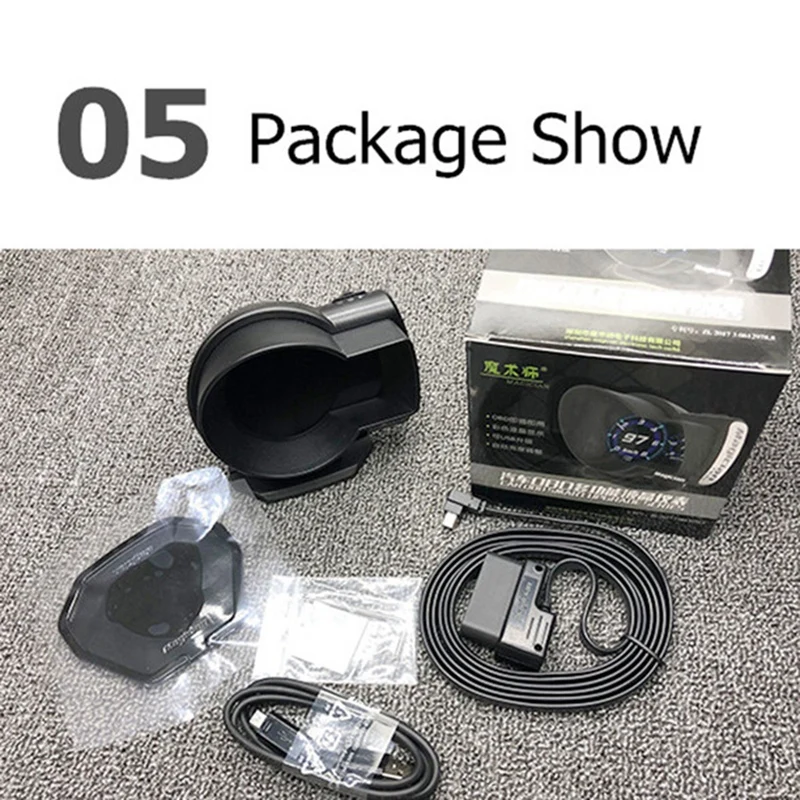

Package Included:
1 * LCD Meter
1 * Power Cord
1 * Non-slip Mat
1 * OBD
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
