USB Watchdog Card V9.0 Computer Blue Screen Halted Auto Restart Miner No Shell R9JA | Компьютеры и офис

Reference Title: USB Watchdog Card V9.0 Computer Unattended Automatic Restart Blue Screen Crash / Mining / Game / Server / LTC BTC Miner Without Clear Plastic Shell
OOTDTY





Description:

Features:
100% brand new and high quality.
-Large screen digital tube and buzzer
-Applicable to a variety of computer motherboards with a Type-A USB interface
-Applicable for windows x86/x64 system includes winxp, win7, win8, win10,android,mac,linux
-Includes driver compatible with a variety of motherboards
-Includes with Desktop software, It can set many functions with the program as your need. Better than no software version.
-Specified Program Monitoring
-Scheduled Restart
-Website Monitoring
-Video Card Monitoring
-Run Log Query
-Support Forced Power off Restart
-Support Connect electricity Automatic Starting up

Display Symbols Description:

All light: Self-examination of a watchdog
On-- : System startup
boot: System reboot
xxxx: Device No., Can be modified by software
d-xx: Number of graphics cards
E-00: Error code，Internal mistake of the watchdog
E-01: Unconnected power line or connection error
E-02: Error code，Reboot line is unconnected
E-03: Error code，The watchdog has been restarted for 5 times, but it can't enter the system normally. Please check the system problem.
E-04: Error code，The watchdog has not received a dog feeding instruction for more than 10 seconds, the system may be dead or the monitoring software is closed, and the horn is alarm.
Twinkle: The system runs normally, the watchdog and the system communicate normally, flashing once to express the communication once
Always: The watchdog USB driver is loaded successfully and establishes a normal connection with the system
Always: The system stops running, dead blue screen or other reasons, the watchdog can't get the communication data

Instructions for the use of a watchdog:

1. Download the installation package
2. install watchdog driver, part of products can be used without any drive. See the manuals for details. It is recommended that all drivers be installed, so that functions can be perfected and monitoring functions are more accurate.

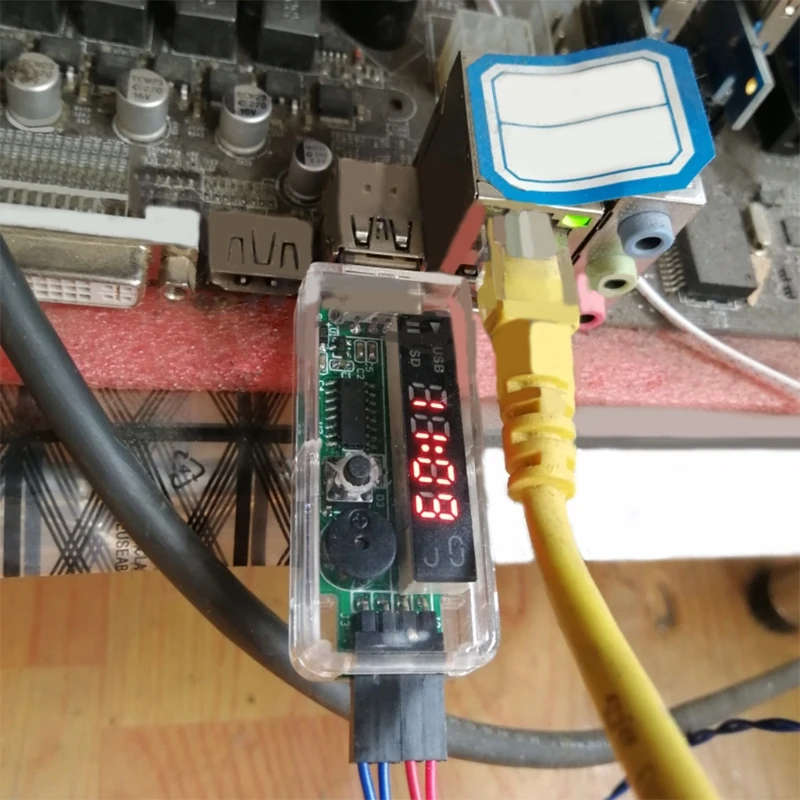

3. The shutdown state is connected to each cable according to the connection diagram. "RST" generally indicates the restart of the computer. The common way of writing is "Reset", "Res" and so on. "PWR" generally indicates the boot of the computer. The common way of writing is "On/Off", "PWR BTN" and so on. Please refer to the motherboard manual.
4. Connect the AC power supply, if the connection is normal, after the electricity can be automatically opened, after entering the system, open the watchdog monitoring software
5. Set the startup monitoring software, some versions can be added automatically, if there is no automatic boot, please add the following method, press the key combination "win" + "X", click on the pop-up menu in the“Run”, then input on the run dialog box: shell:startup enter to enter the system boot from the startup folder, the shortcut watchdog monitoring software on this folder can be realized automatically start running the program.
IMPORTANT HINTS:
When the installation is completed, please click the "reset now" button on the software.
If the computer is restarted, the installation is successful.
If you need to test whether a watchdog is dead or not, you can overfrequency the machine or close the monitoring software, and the computer will restart automatically after the timeout.
6. Setup
Timeout(Seconds): How long does the system restart after the system is dead or blue screen, Set range: 10-1270 seconds
Scheduled Restart(days): 0 means not restarting ,Set range: 1-99 days
Website Monitoring: Restart the computer when the website is not accessible and restart only 3 times, if you do not need to monitor, empty the input, then save it
Specified program Monitoring: Restart the computer when the specified program stops running, if you do not need to monitor, empty the input, then save it
Video card Monitoring: Restart the computer when the number of graphics cards change, and restart only 1 time

Specifications:
Product name: USB Watchdog
Material: Plastic + Metal
Color: shown as pictures
Type: with clear plastic shell

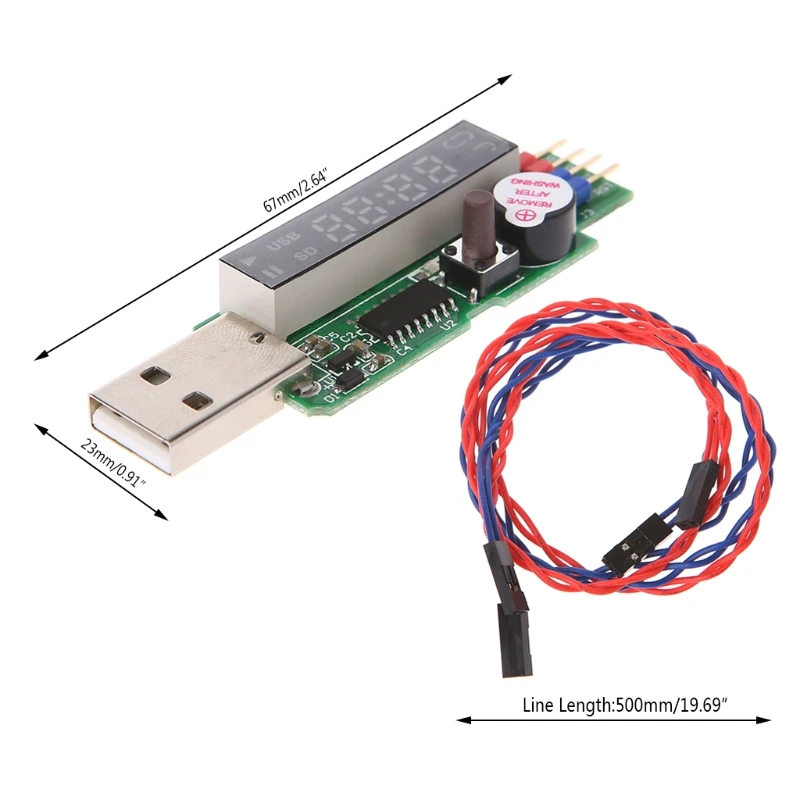

Size: 65×23×14mm/2.56×0.91×0.55in
Cable length: 50cm/19.69in
Reboot timeout that are adjustable: 10-1270senonds, default 180seconds
Interface type: USB 2.0
Alarm type: audible and visual alarm
Display type: Digital tube
Display parameters: Host number, system time, number of graphics cards, error code, communication state
Reboot mode: Computer crashes, Blue screen, Abnormal card, The specified program stops running, Network breakage
Power supply: 5V/0.2A
Operating system: Windows, Linux, Mac, Andriod
Quantity: 1 PC

Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)

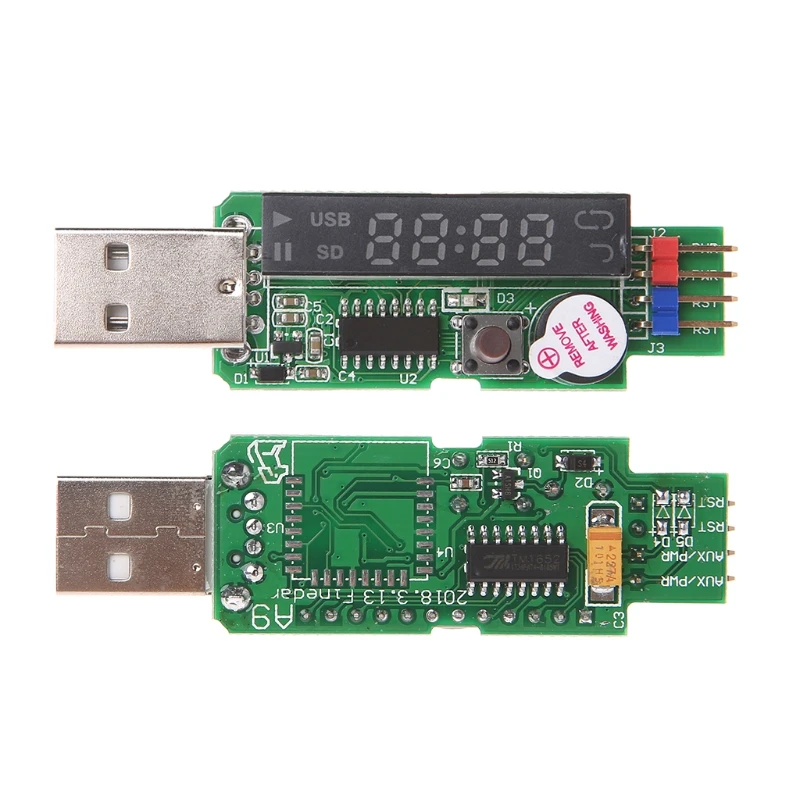

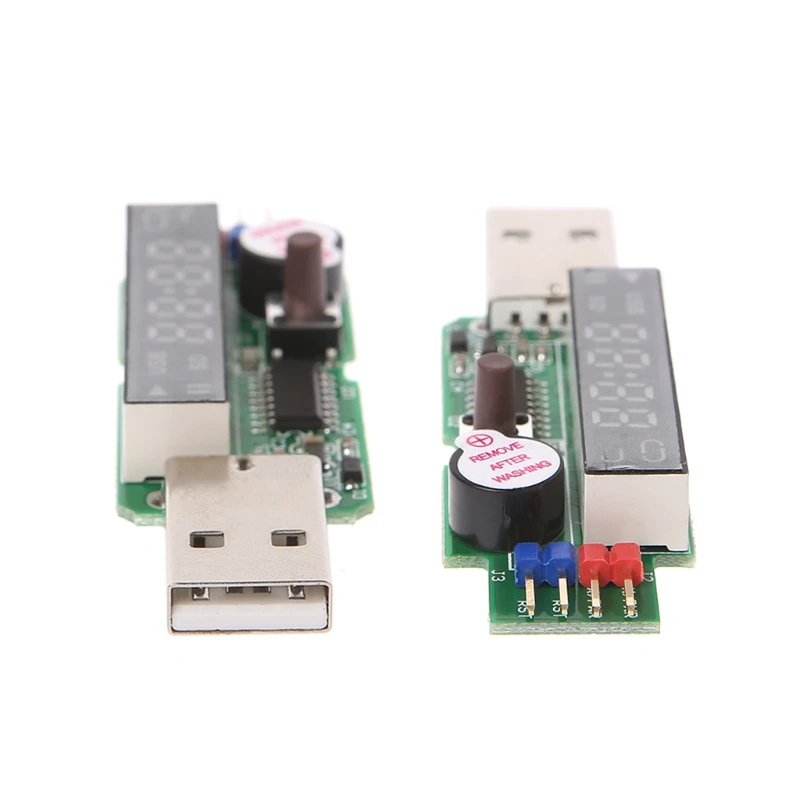

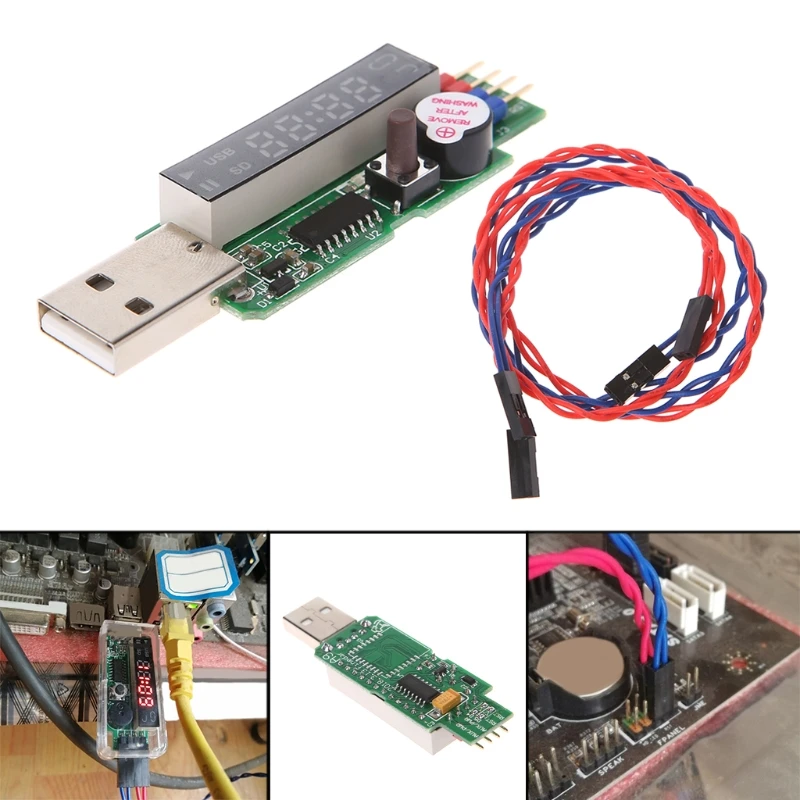

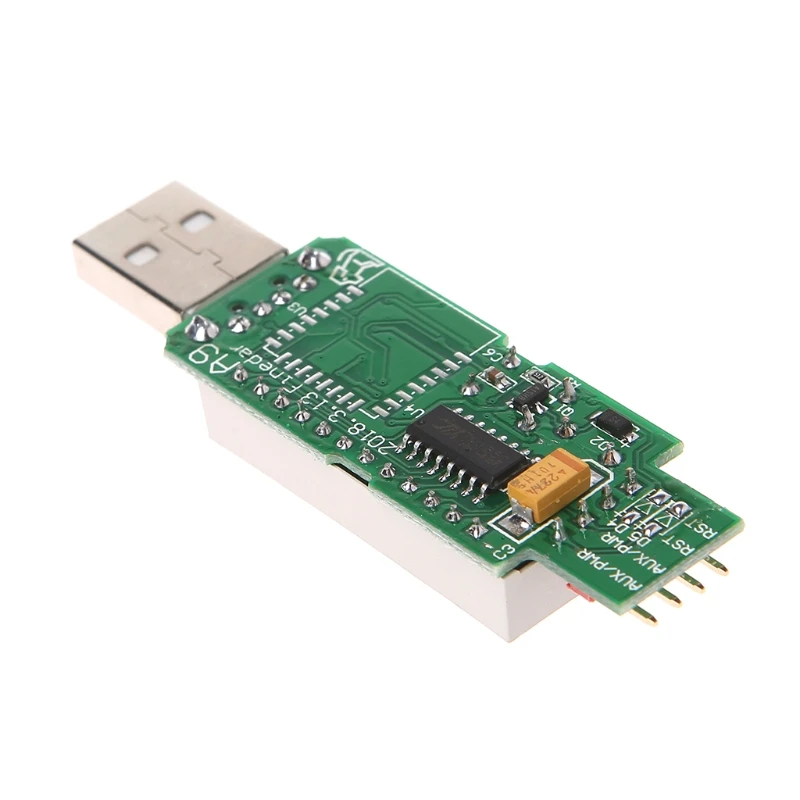

1 x Watchdog Control Board (with clear plastic shell)
1 x Reset Control Cable
1 x Monitor Software
(Tips: 1.You can get the software from this website. Software Download Link: http://finedar.oss-cn-beijing.aliyuncs.com/PCWatchDog_V9.0_en.zip
2. If the website fails, pls leave your email address to us, we will send the Monitor Software & Driver files to your email. Thank you!)
