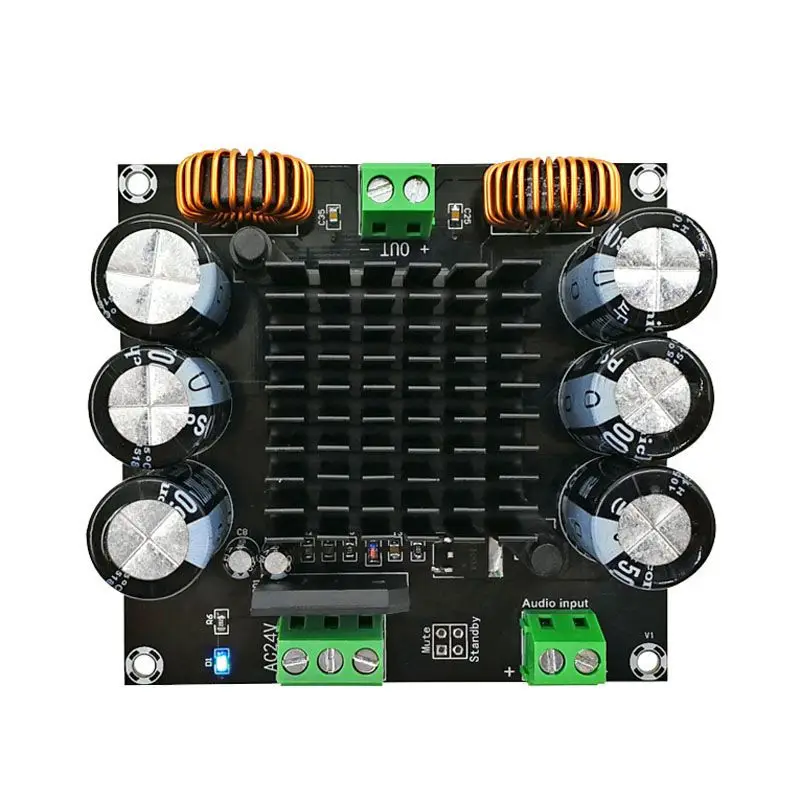

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } With the new original TDA8954TH core technology, the BTL bridge circuit is more efficient.

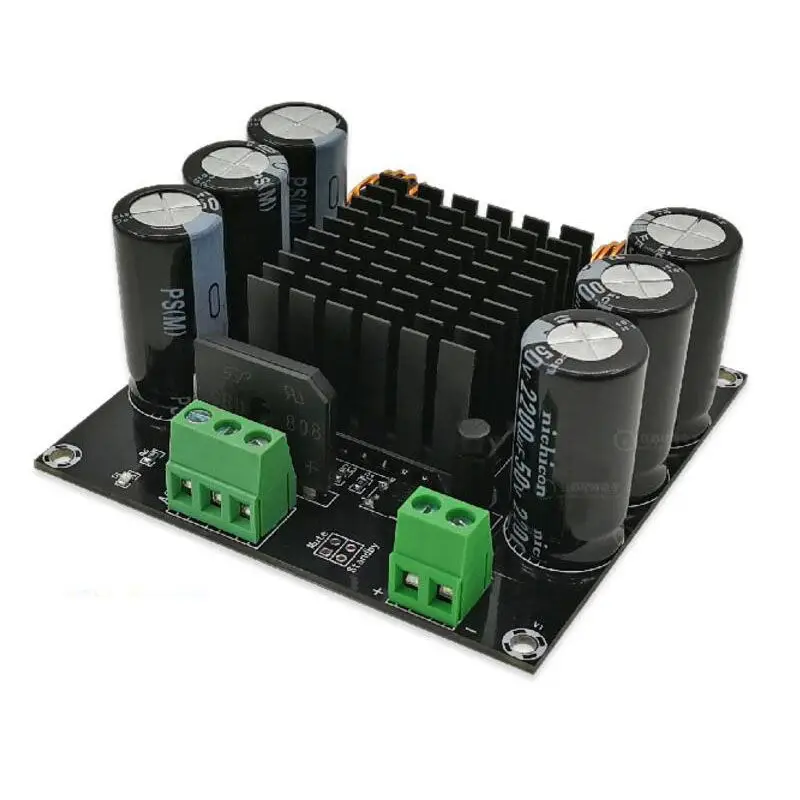

Adopt original original rectifier bridge, original J13003 transistor

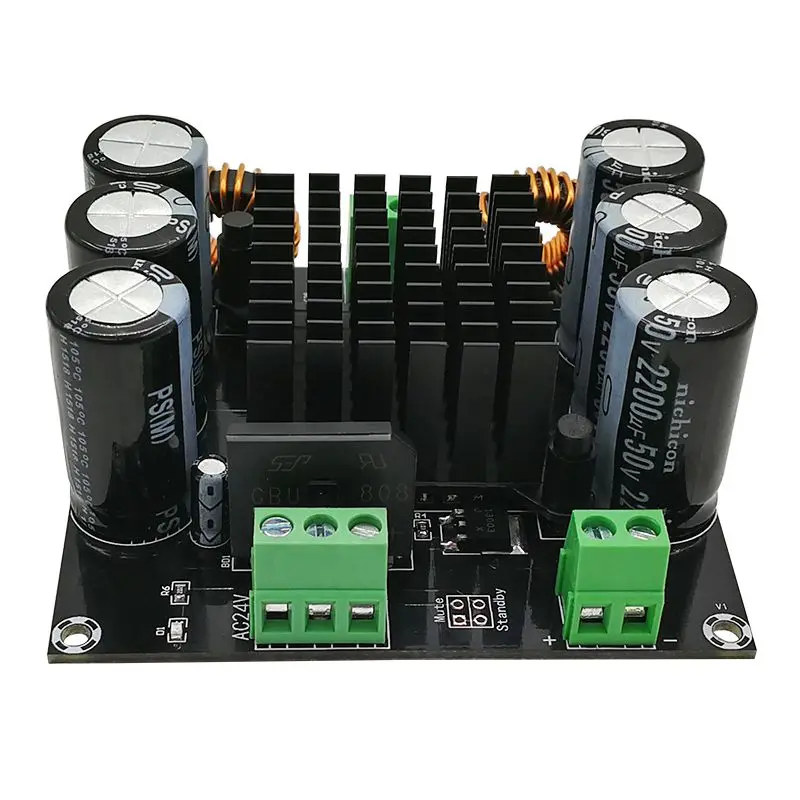

Adopt 2200uf array large capacity electrolytic capacitor.

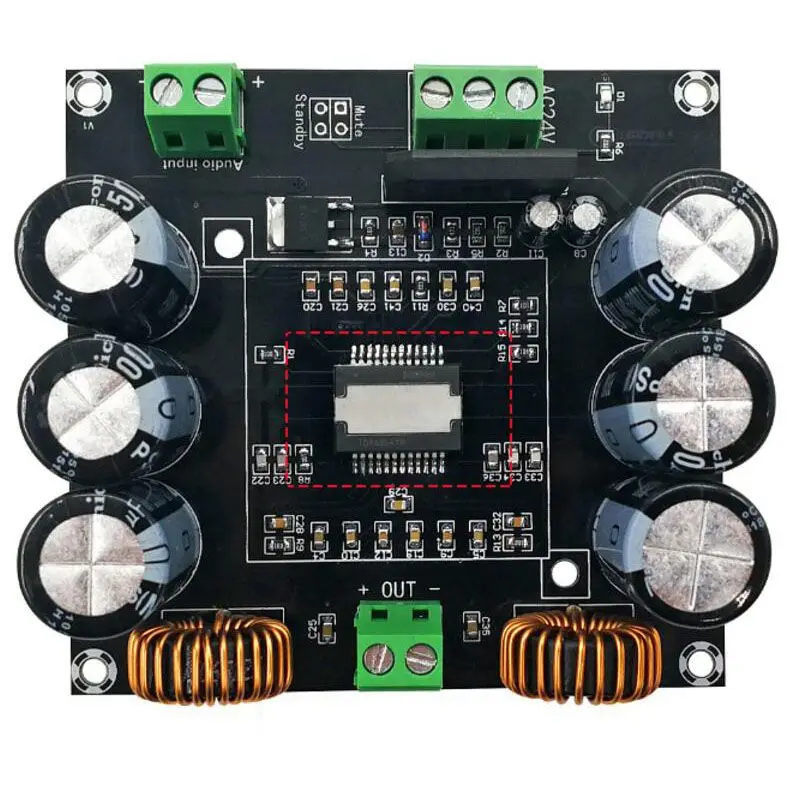

Kernel chip: TDA8954TH
Input power: recommended dual 24V toroidal transformer (range dual 12-double 18V)
Output power: 420W
Number of channels: mono
Output impedance: 2-8 Ohm (4 Ohm recommended)

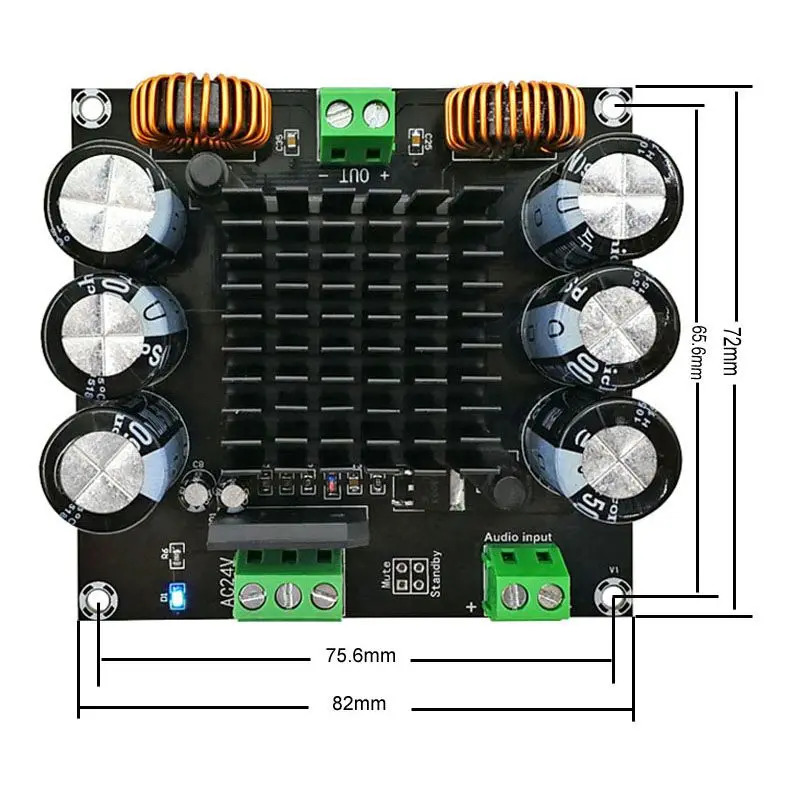

Size: 82 * 72 * 37mm
colour: black
Material: metal
Net weight: about 121g
Package Included:
1* 420W TDA8954TH Digital o power Amplifier Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
