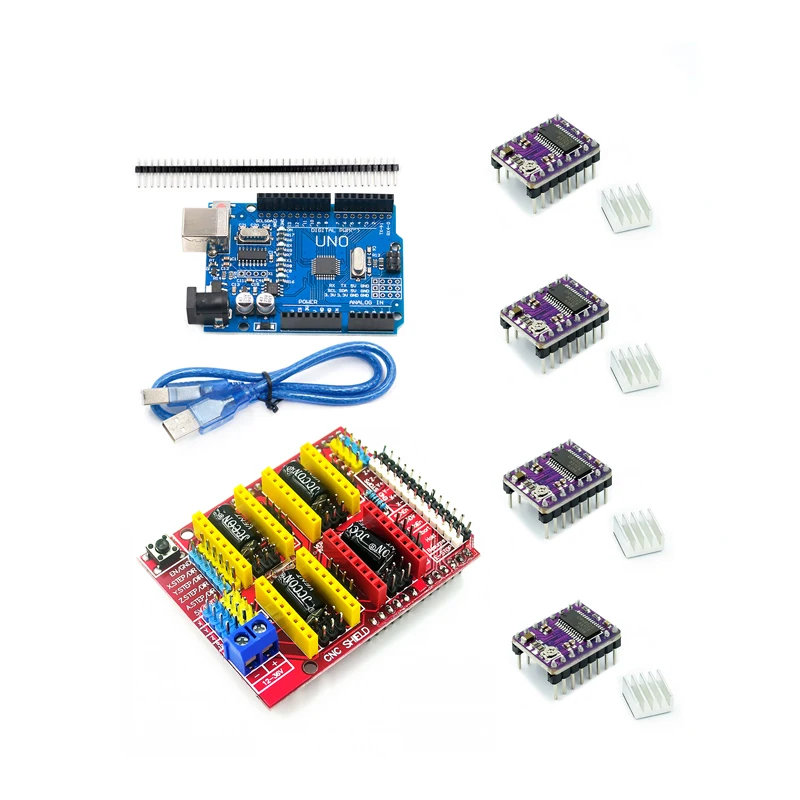

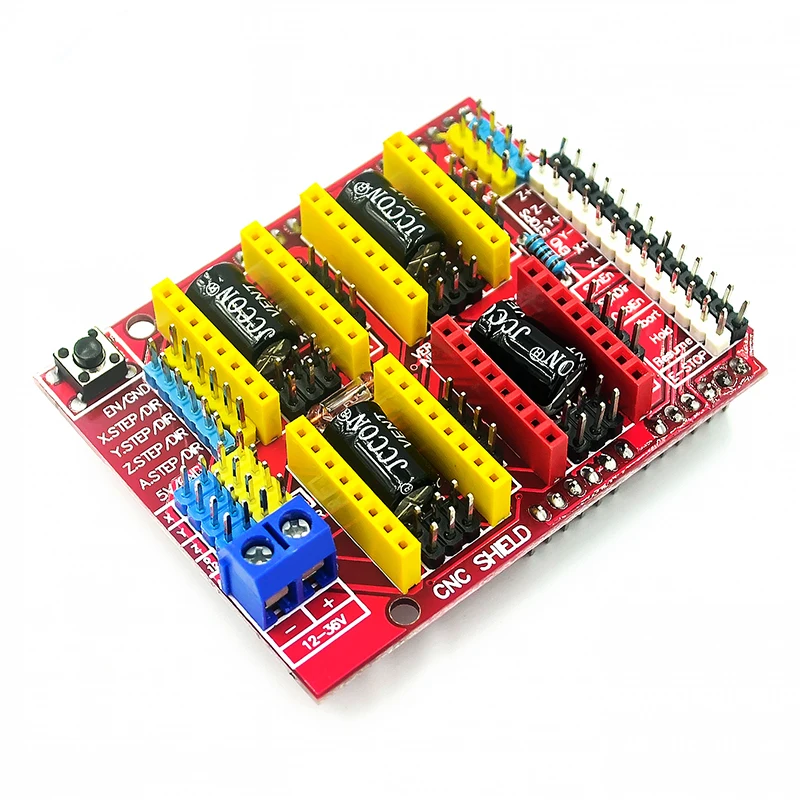

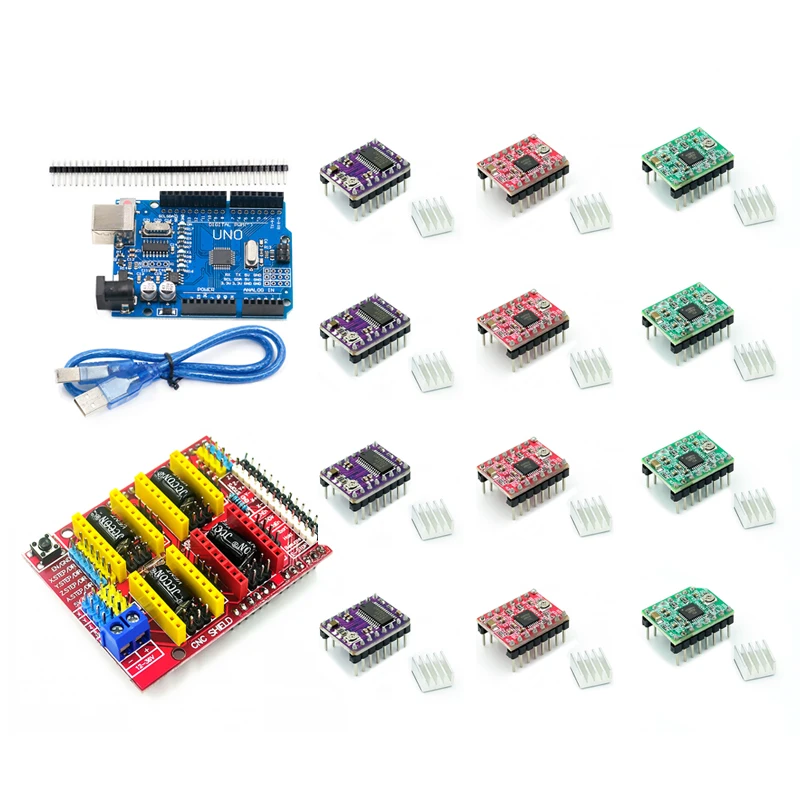

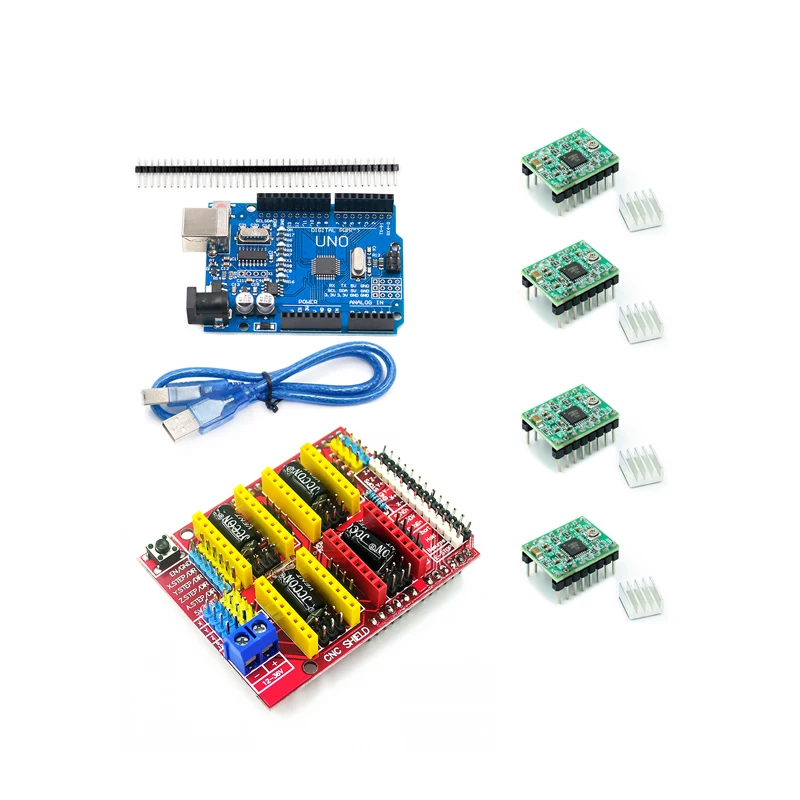

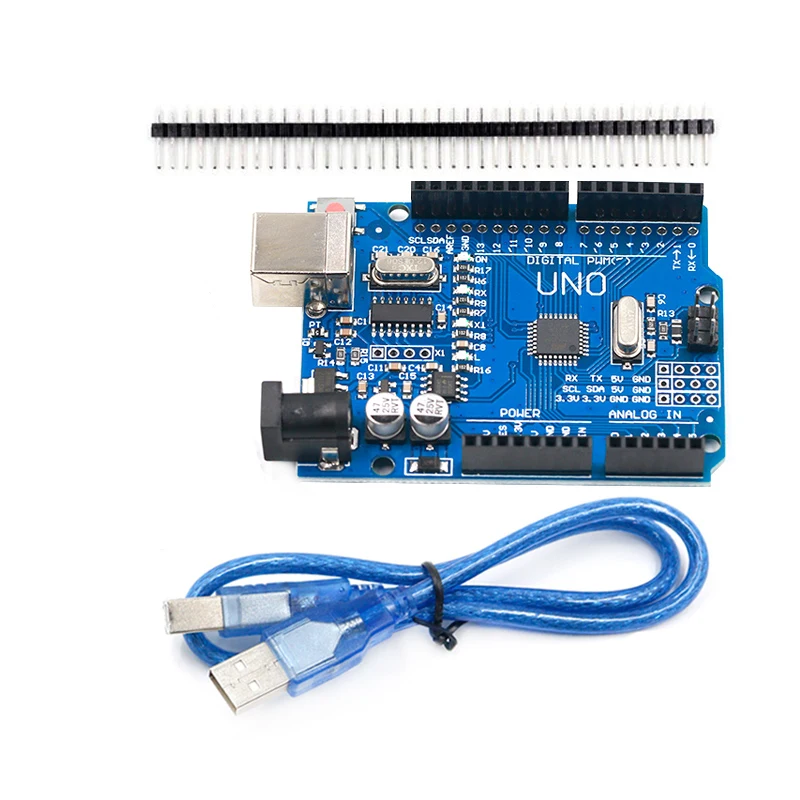

CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты

Сохраните в закладки:

Цена:RUB*

Количество:

Доставка в Эль-Монте, по России и СНГ


  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Sep-15-2025 0.19 руб. 0.65 руб. 0 руб.
    Aug-15-2025 0.63 руб. 0.74 руб. 0 руб.
    Jul-15-2025 0.1 руб. 0.94 руб. 0 руб.
    Jun-15-2025 0.73 руб. 0.22 руб. 0 руб.
    May-15-2025 0.36 руб. 0.48 руб. 0 руб.
    Apr-15-2025 0.55 руб. 0.5 руб. 0 руб.
    Mar-15-2025 0.73 руб. 0.6 руб. 0 руб.
    Feb-15-2025 0.63 руб. 0.87 руб. 0 руб.
    Jan-15-2025 0.70 руб. 0.12 руб. 0 руб.

    Новые товары

    Характеристики

    CNC Shield V3 engraving machine 3D Printer+ 4pcs A4988/DRV8825 Driver expansion board for Arduino + UNO R3 with USB cable | Инструменты

    Описание товара

    123



    About Drv8825



    Introduction:



    The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.



    The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.



    The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).




    Features:


    Simple step and direction control interface Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Can interface directly with 3.3 V and 5 V systems Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout Short-to-ground and shorted-load protection 4-layer, 2 oz copper PCB for improved heat dissipation Exposed solderable ground pad below the driver IC on the bottom of the PCB Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information) Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) 45 V maximum supply voltage Built-in regulator (no external logic voltage supply needed)





    Subdivision:

    00
