Off-grid Solar panel System 360W 12v 110V 220v battery charger energy plate Photovoltaic for home RVs trailers boats sheds |

Off-grid Solar panel System 360W 12v 110V 220v battery charger energy plate Photovoltaic for home RVs trailers boats sheds |

Off-grid Solar panel System 360W 12v 110V 220v battery charger plate Photovoltaic for home RVs trailers boats sheds

Q: How long does it ship from China?

A:For this prodcut,we will ship to you by express delivery like Fedex,UPS,DHL,E-ems.TNT. normally you can receive it within 10-14 days. Attention: for remote area like island,there will be remote area fee.

Specification of 120w

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Maximum power voltage(Vmp) 18V

Short circuit current(Isc) 6.8 A

Maximum power current(Imp) 6.5A

Cell efficiency 21%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 3100g

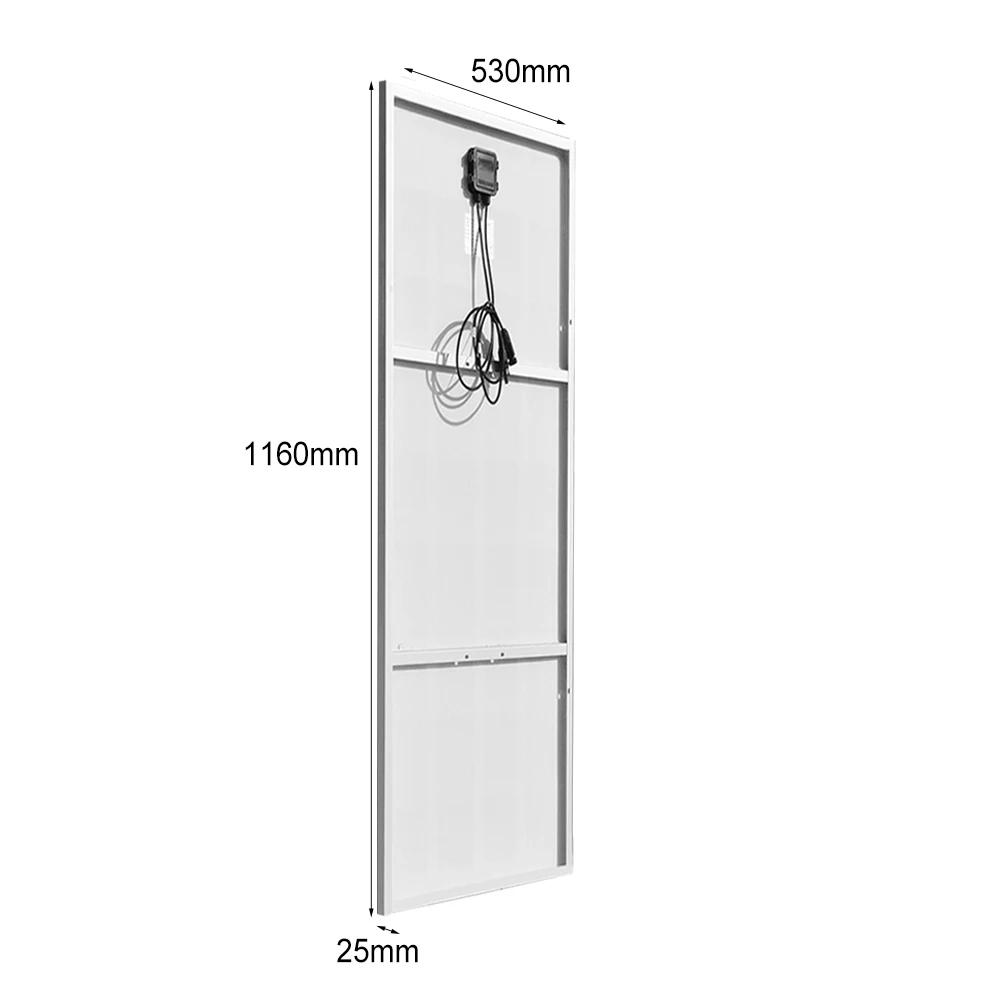

Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

easy to fit

2 holes of right and left side 6mm*9mm(oval)

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa)

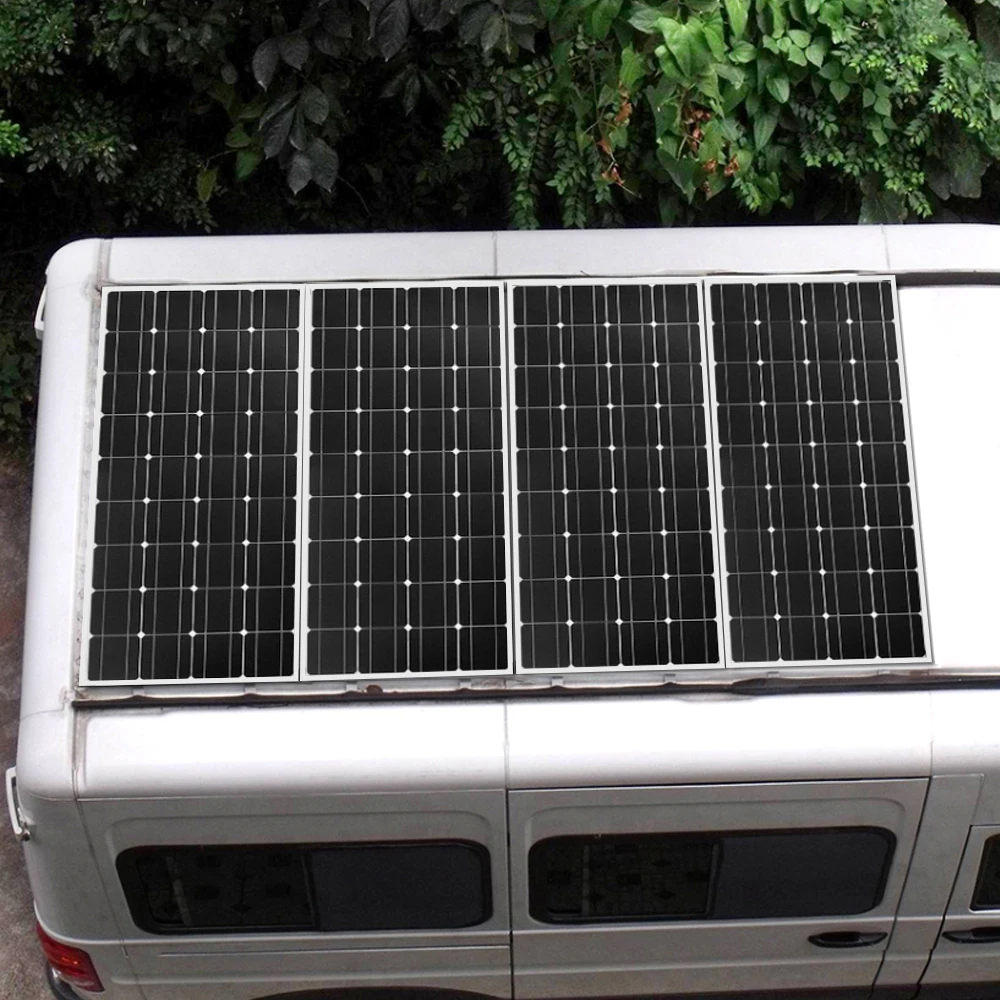

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.Optimum Operating Current (Imp): 5.29A

Attention

This product we set up warehouse in Spain，When you buy it,if you are in EU,we will ship to your country that you don't need to consider customs clearance and duties and it will be fast delivery.

However，

the zip code in Spain that starts with 07,35, 38, 51, 52.

the zip code in France 20001-20999,97100-97699,98400-98899.

the zip code in Italy that starts with 22,23,47,69. the zip code in Denmark 100-999,3900-3999.

the zip code in Portugal 9000-9900. Mont Athos in Greece.

the zip code in Finland 2200-2299

Above zone for local shipping company,they are remote area.there is no logistics shipping to above zone from Spain.so we will ship from China to above zone.there sometime will need pay extra remote area fee. hope you can understand.

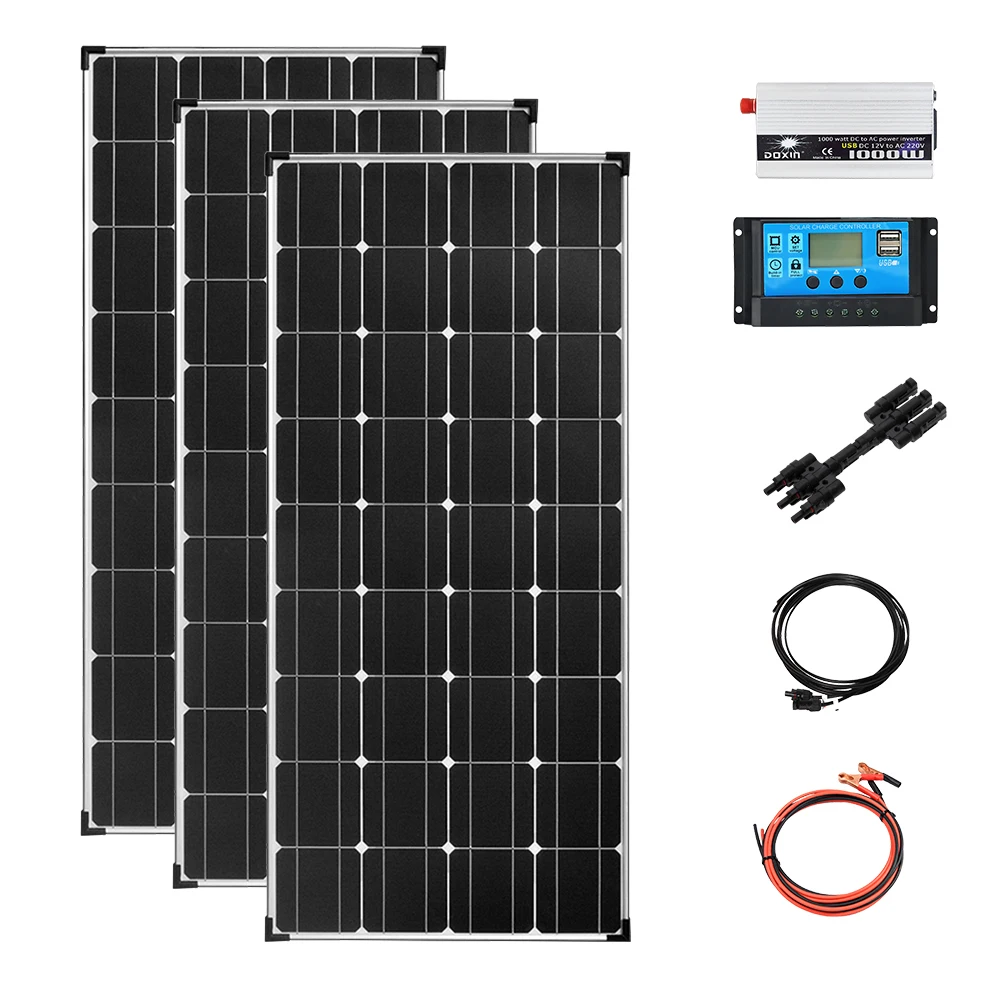

Package#1 of 12V 220v System

3*120w solar panel

1*12v/24v 30A controller

1* 3 meter alligator clips

1* 3 meter pv cable

1* 3 in 1 adapter

1* 12v 220V 1000W inverter

Package#2 of 12V 110V System

3*120w solar panel

1*12v/24v 30A controller

1* 3 meter alligator clips

1* 3 meter pv cable

1* 3 in 1 adapter

1* 12v 110V 1000W inverter

Package#3 of 360w solar panel

3*120w solar panel

Solar system kit wiring method and precautions

1.The solar system kit connection is divided into parallel connection or serial connection. The controller must be first connect the battery , and then connect the solar panels.

2.When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3.The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4.When the cable is connected to each component, the connection should be stable and there should be no looseness.

5.The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.

controller

12v 24 controller
can charge both lithium nad lead-acid battery,AGM battery

3 meter alligator clips

3 meter pv cable

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.
