Brand: ADT-Link

Product model: USS series products

Product name: USB3.0 Type A adapter extension cable

Wire length: 10cm/20cm/30cm (support length customization, if you need other lengths, please contact us to change the price.)

Adaptation range: USB 3.0 type A

Speed bandwidth: USB 3.0 5G/bps (10G/bps high-speed support within 50cm, 5G/bps within 1 meter)

Current capability: 5V/3A (measured to support 3A within 50cm and 1.5A within 1 meter)

Product application: GPS navigator, ROCK Pi 4 Raspberry Pi MCU development board, built-in USB device to extend the use of adapter, convenient for brushless pan/tilt, steering gear pan/tilt, Xiaosi pan/tilt, SLR handheld pan/tilt USB Power supply and AV transmission, etc.

Purchase restriction: This product is specially designed for the connection of built-in USB devices. It is not suitable for ordinary external use. It is limited to the product engineer to specify the purchase. Individual buyers should not purchase it. It does not support OTG external use, is not suitable for civilian use, is not easy to use for general use, and does not support return and exchange. Please consider carefully before placing an order.

Procurement Tips: Be sure to buy 1~2 samples first and then purchase in bulk after testing and verifying that they are correct.

Description of wire length:

The length of the wire refers to the part of the visible wire, excluding the PCB and the connector, if it contains the PCB and the connector, add about 4cm. The total length is about 9cm, please refer to the 5cm dimension mark in the figure below.

Product advantages:
Material advantages: use German patented imported wire, use high quality gold-plated connectors, high frequency support HDMI 2.0 stable transfer. PCB uses high-quality low-resistance high-quality materials, PCB workmanship precision, PCB uses high TG sheet, copper thickness is thickened to 1oz; connector gold-plated conductive performance, can reduce the black screen blue screen splash caused by increased oxidation rust resistance Flower screen problem.

Design advantages: differential signal without via design, no CAF micro short circuit phenomenon, high speed signal data transmission without parasitic capacitance and parasitic inductance signal attenuation interference problem, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference , no card hardware, product installation is easy.

Production advantage: Our factory direct sales, product customized production, welding at the metal welding point during production. And put on the heat-shrinkable tube protection, the product is firm and reliable, there will be no problem of disconnection and disconnection. The product works well, stable and reliable.

Q&A:

Is there any EMI shielding for Cable?

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

How compatible are wires?

Supports USB 3.0 high-speed, all of product test PASS 100% before shipping.

Cable thickness? Can it be bent?
The thickness of the wire is 1.05mm, and it can be bent and folded without affecting the use.

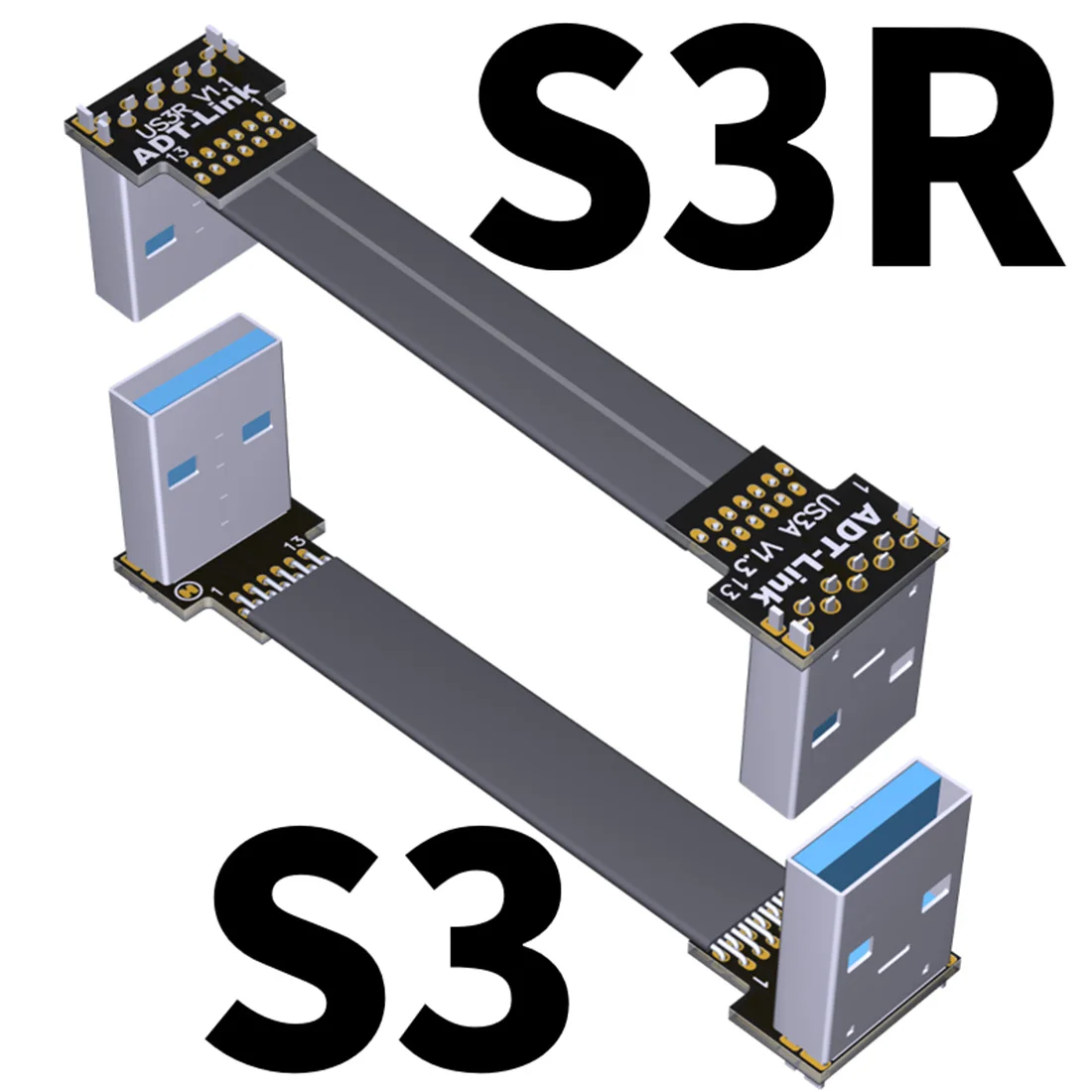

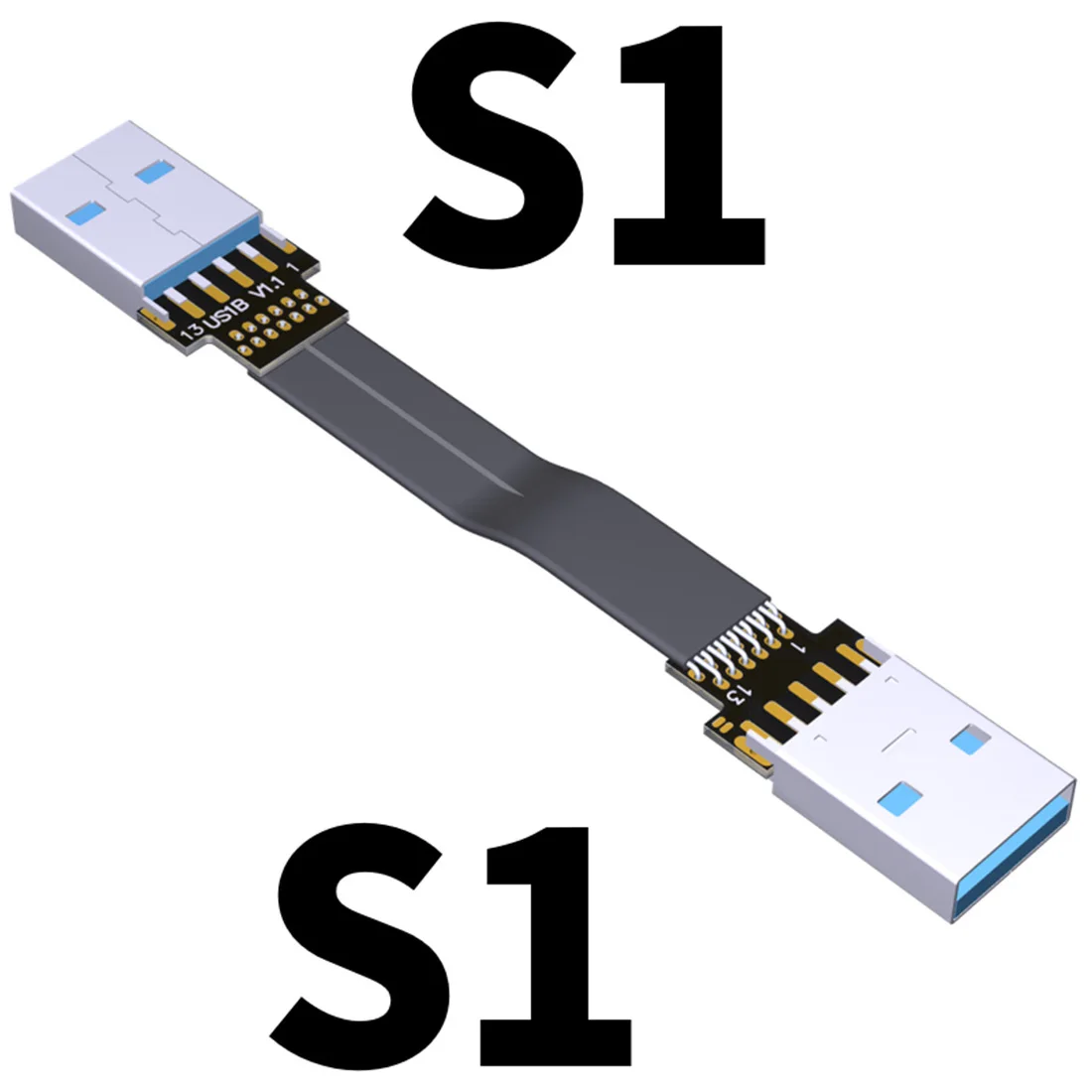

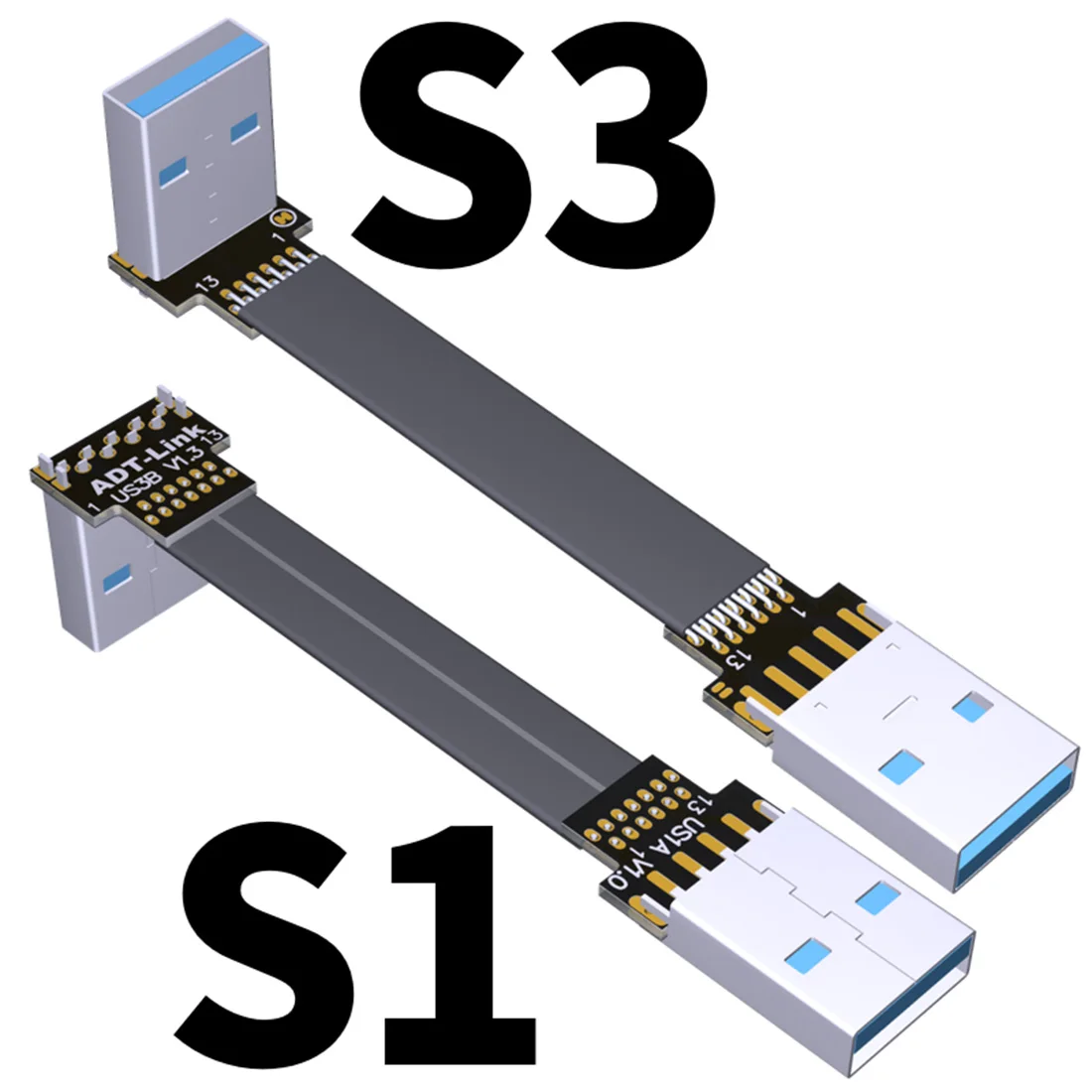

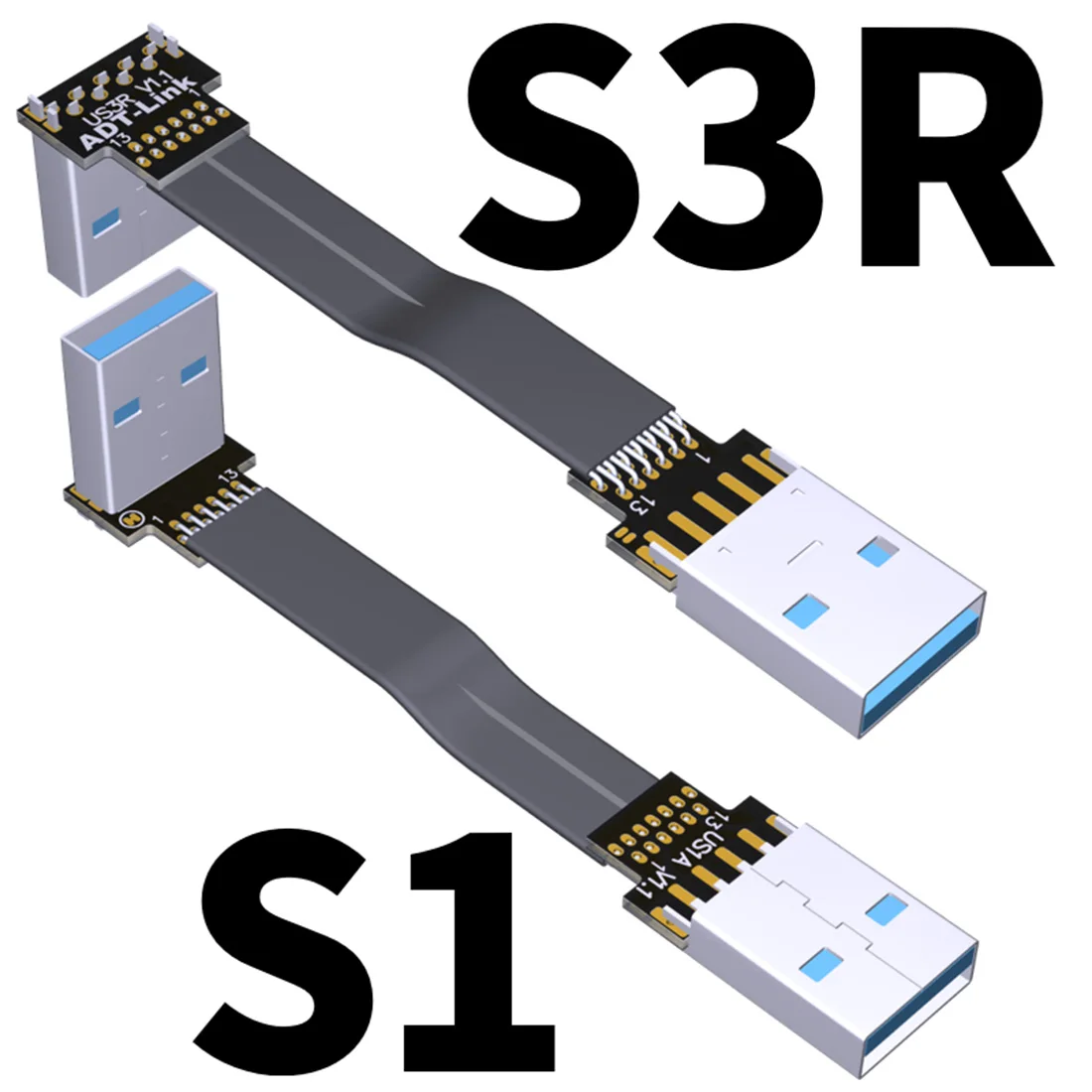

USB interface model:
