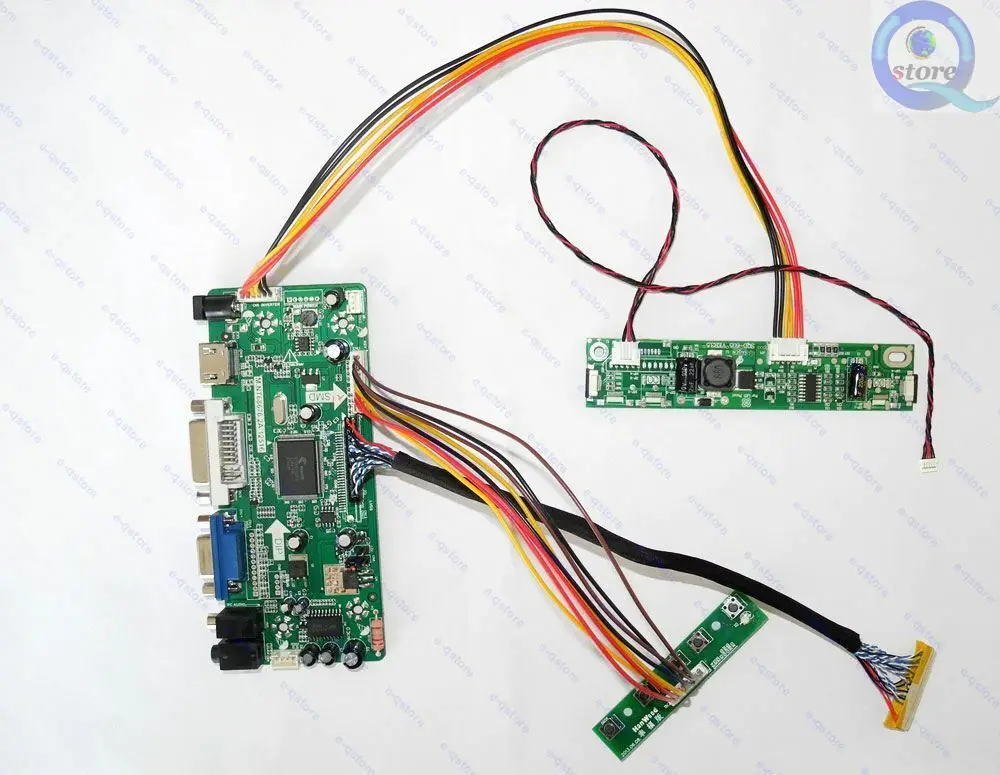

e-qstore:Turn M200RW01 V.6 V6 1600X900 Panel Screen to Raspberry Pi Monitor-Led Controller Driver Board Kit HDMI-compatible VGA |

e-qstore:Turn M200RW01 V.6 V6 1600X900 Panel Screen to Raspberry Pi Monitor-Led Controller Driver Board Kit HDMI-compatible VGA |

    Plug&Play, No need soldering.

    This kit is for lcd M200RW01 V.6 only, please make sure that your lcd model number is the same before placing the order. If your lcd is the different one, please remember to contact us with lcd model number for suggestion.

     Necessary Accessories for turning this bare LCD to desktop monitor:

   1. LCD Controller board

   2. Led Driver

   3. LVDS cable

   4. Keypad

   5. VGA cable/DVI Cable/HDMI cable (not included)

   6. Power Adapter(not included)

   If you have already had a VGA cable/DVI cable/HDMI cable and a power adapter (Ouput 12V/4A -- it is for small size lcd from 10.1inch to 22inch), this kit is a great choice for you, if you want to buy VGA cable/DVI cable/HDMI cable/power adapter, please feel free to let us know.

   1. Please make sure that your LCD is in good condition before bidding this item, else you will be responsible for the incompatibility.

   2. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.

  No metal contact is allowed.

1. Take away the old led driver and old LVDS cable from the LCD panel.

2. Connect the new led driver and new LVDS cable to your LCD panel.

3. Connect controller board kit to the PC with VGA cable/DVI cable/HDMI cable.

4. Input power of 12V/4A. ( Please don't revise the voltage jumper setting on the lcd controller board before confirmation from us, because wrong revising of this voltage will get your lcd burnt. By the way, please don't connect the lvds cable wrong, some wrong connection can get your lcd burnt too. If you are not sure, please feel free to contact us.)

Package Include:

      This kit is for lcd M200RW01 V.6 , If your lcd is not with the same lcd model number, Please feel free to contact us with lcd model number.

    Welcome to customize your own kit!

  Successful examples collection:

   Successful examples from Netherlands Friend mobidroid:

​

United Kingdom Friend p33dy_b' successful example:

Poland Friend biputox's great splicing screen ( however, we don't know how to make it yet):

Germany Friend god-of-games's Successful example:

Portugal Friend jcag1986's project connected to PS3:


      Germany Friend d-mantion's Project:

American Friend cryalith's Raspberry PI Computer:

Australian Friend beyelka's Project:

Successful Example (rossg77 -- an American friend's Project ):

  Successful Example (radicalboy_fr -- a French friend's Project ):

Successful Example (docpot2008 -- a Canadian friend's Project ):

Malta Friend drac1977's Project:

USA  Friend loafer_tingo's Project :
