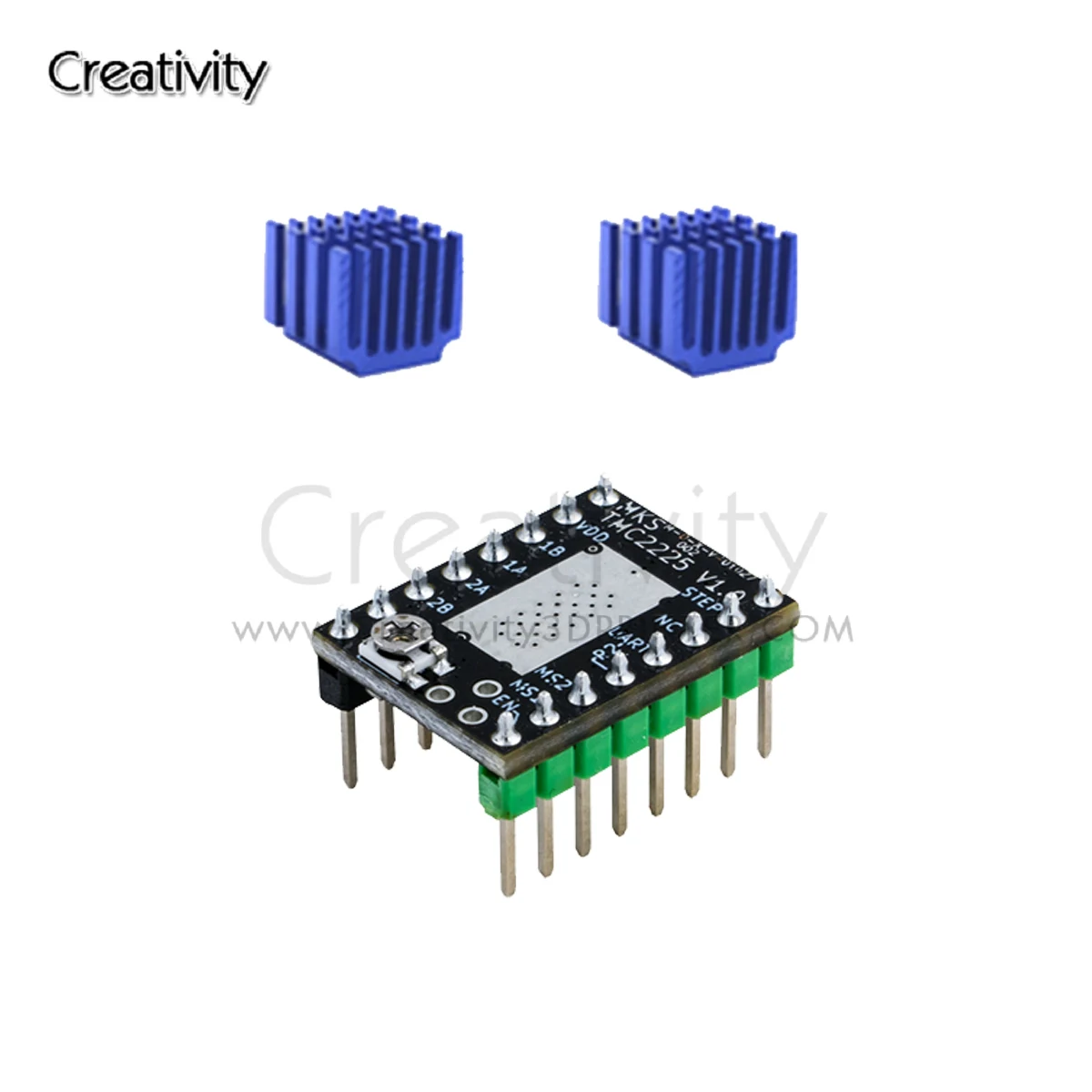

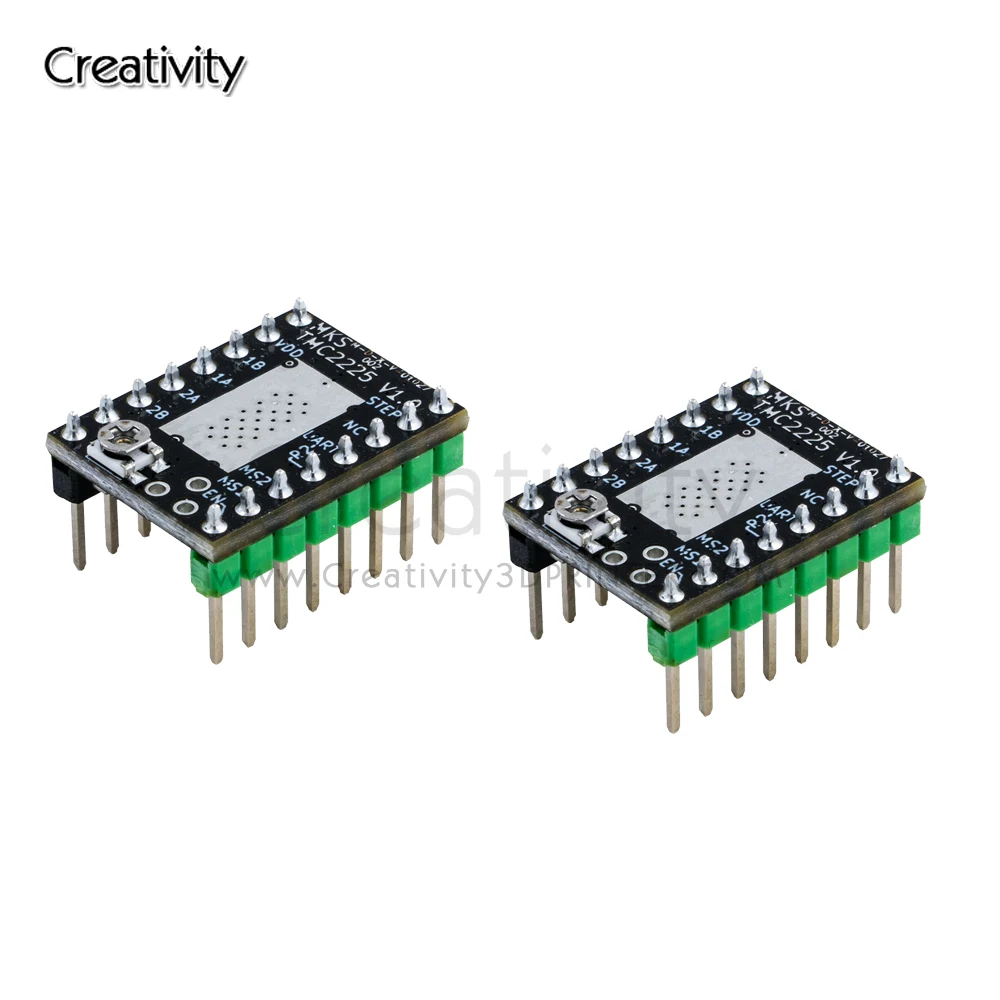

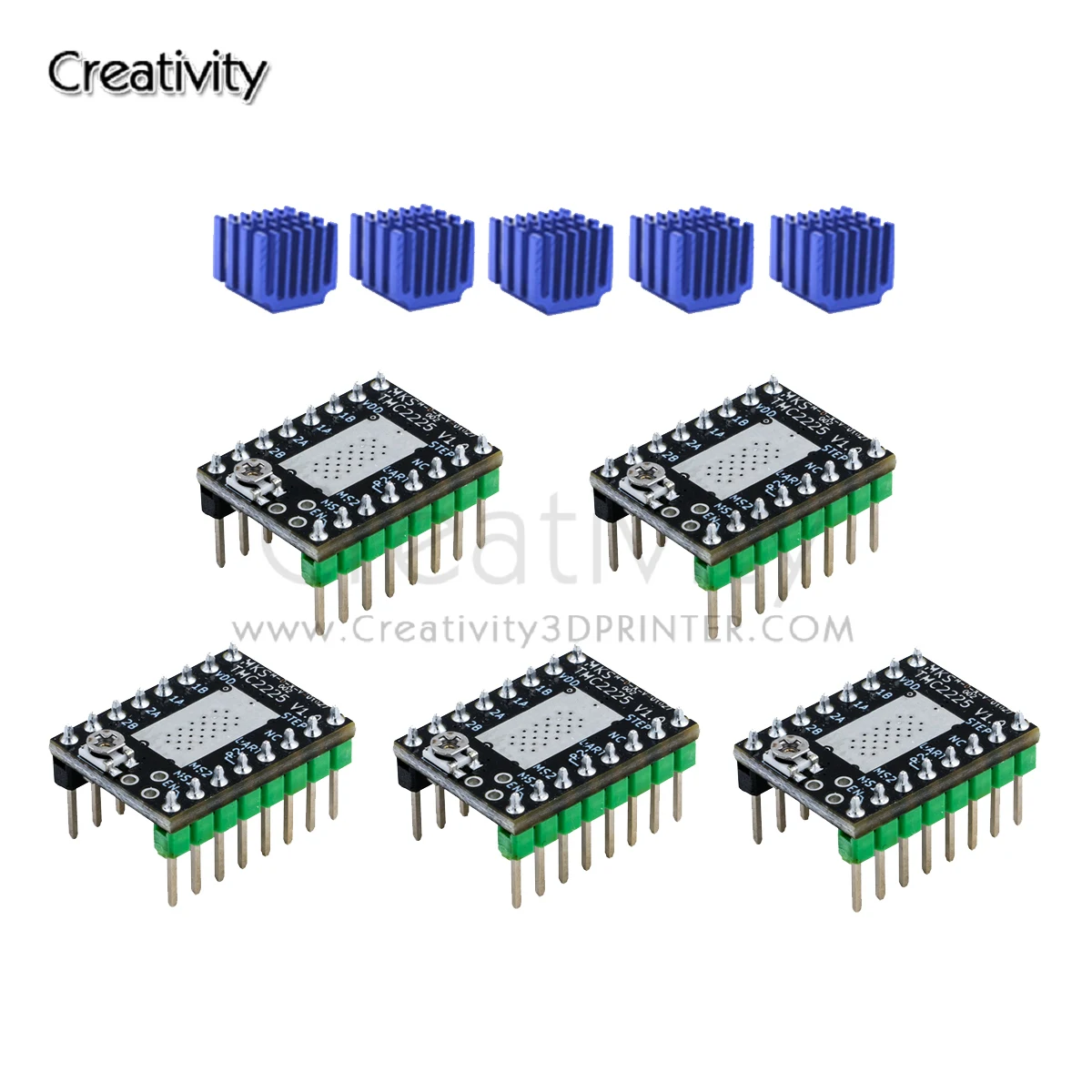

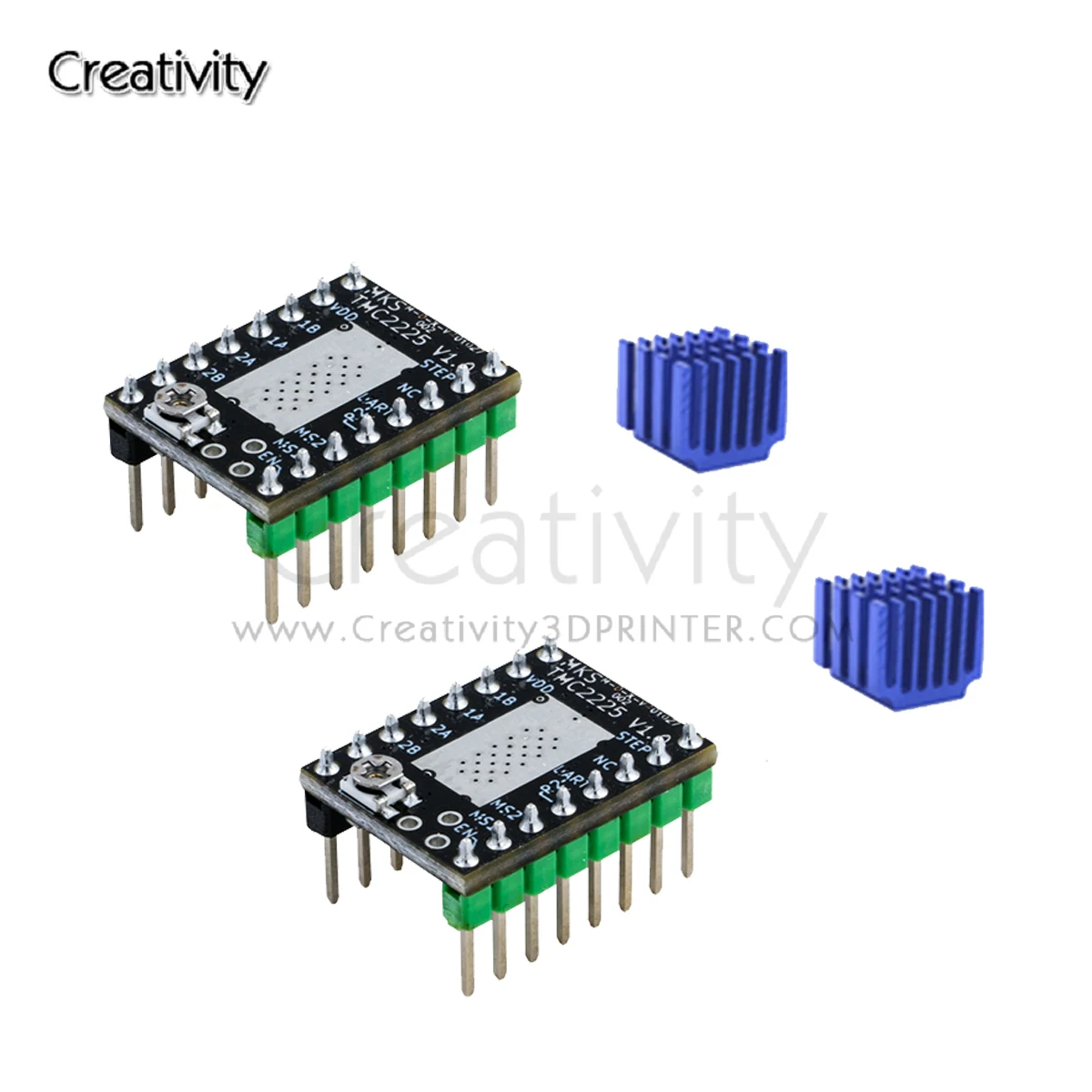

2/5PCS Makerbase MKS TMC2225 2225 Stepper Motor Driver StepStick 3D printer parts ultra silent For SGen_L Gen_L Robin Nano | Компьютеры и

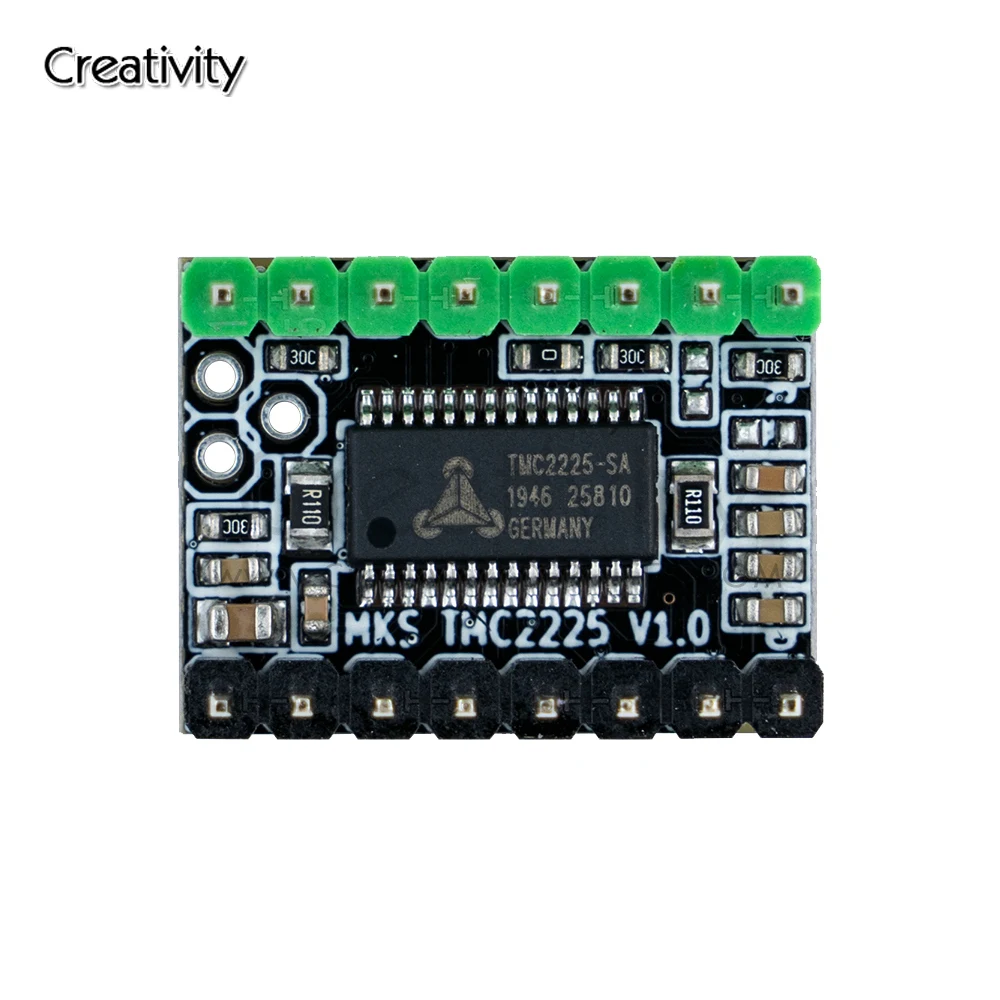

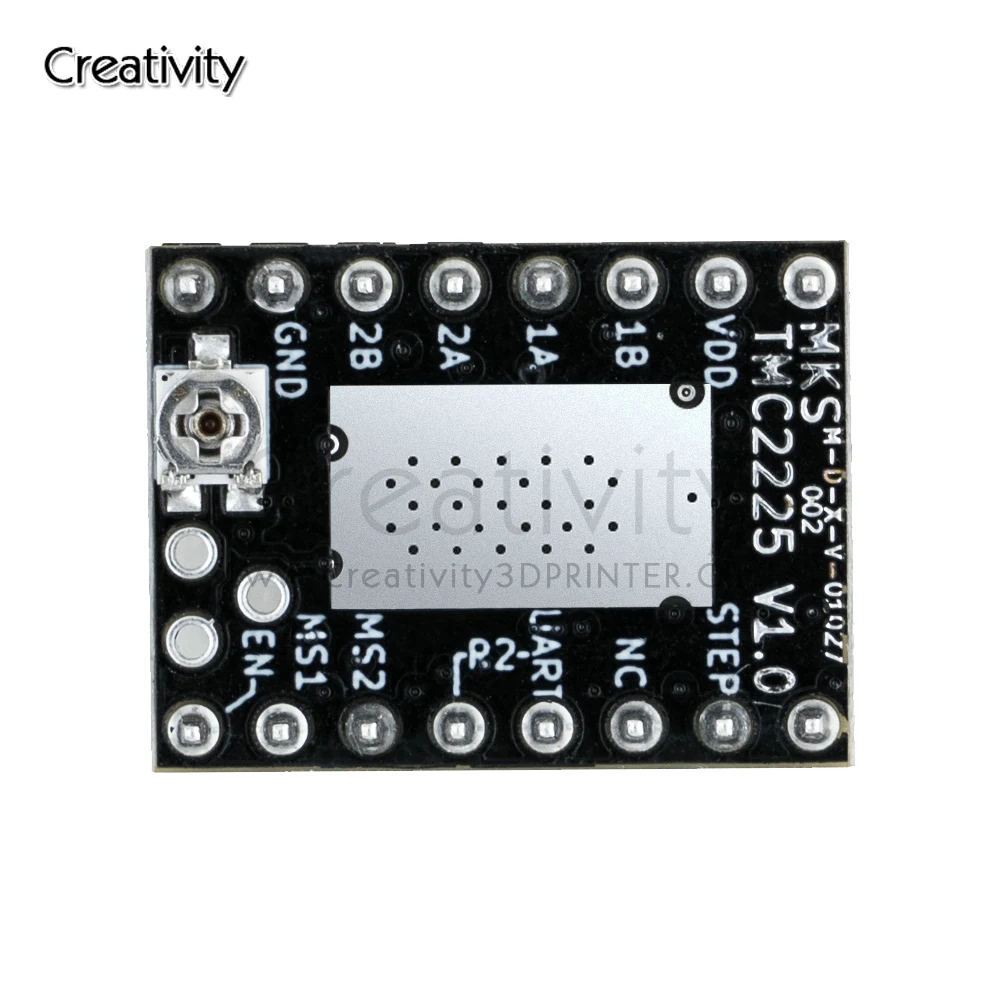

Overview:Tmc2225 is the next generation product to replace tmc2208, have better price and all function of tmc2208. The only difference between TMC2225 and TMC2208 is package.The package of TMC2225 is HTSSOP,and the package of TMC2208 is QFN, so TMC2225 have better heat dissipation performance. Features:Ultra quietLarge heat sink,good heat dissipationSupport uart mode by set jumper caps instead of welding on mks gen_l V2.0,skr1.3/1.4,mks sgen_l.Parameter:Default current:1.25aMax current:2.0aLogic voltage:3.3v/5vInput voltage:4.75v-36vMicrostep:up to 1/256Mode:dir/step,uartDriver current regulation:Verf measures the voltage of Gnd and potentiometer middle.Please DO NOT connect the motors when measuring the voltage, or it's easy to burn the drive.Please connect the power supply when measuring voltage as well, do not connect only the USB power.Please pay special attention to the direction, do not insert wrongly!Notice:Pay attention to the connection direction,do not reverse it.The motor direction is opposite to that of A4988 and DRV8825, please adjust the firmware or adjust the motor wiring if you want to change A4988.Dir/step mode used in the printer control board, please pay attention to set the jumper cap MS1 MS2.
