1. INTRODUCTION
The Fog Free Photo generates the light and breeze, this can cause the reflector deforgging, andassist the dentist taking photos in the mouth.

2. TECHNICAL PARAMETERS
Battery: 1000mAh/3.7V
Input: 5V1A
Output: 1.8W Max

3. CHARGING
1) When the light flashes, lightness is not enough or fan shutdown automatic, please stop using the device and recharge the battery.

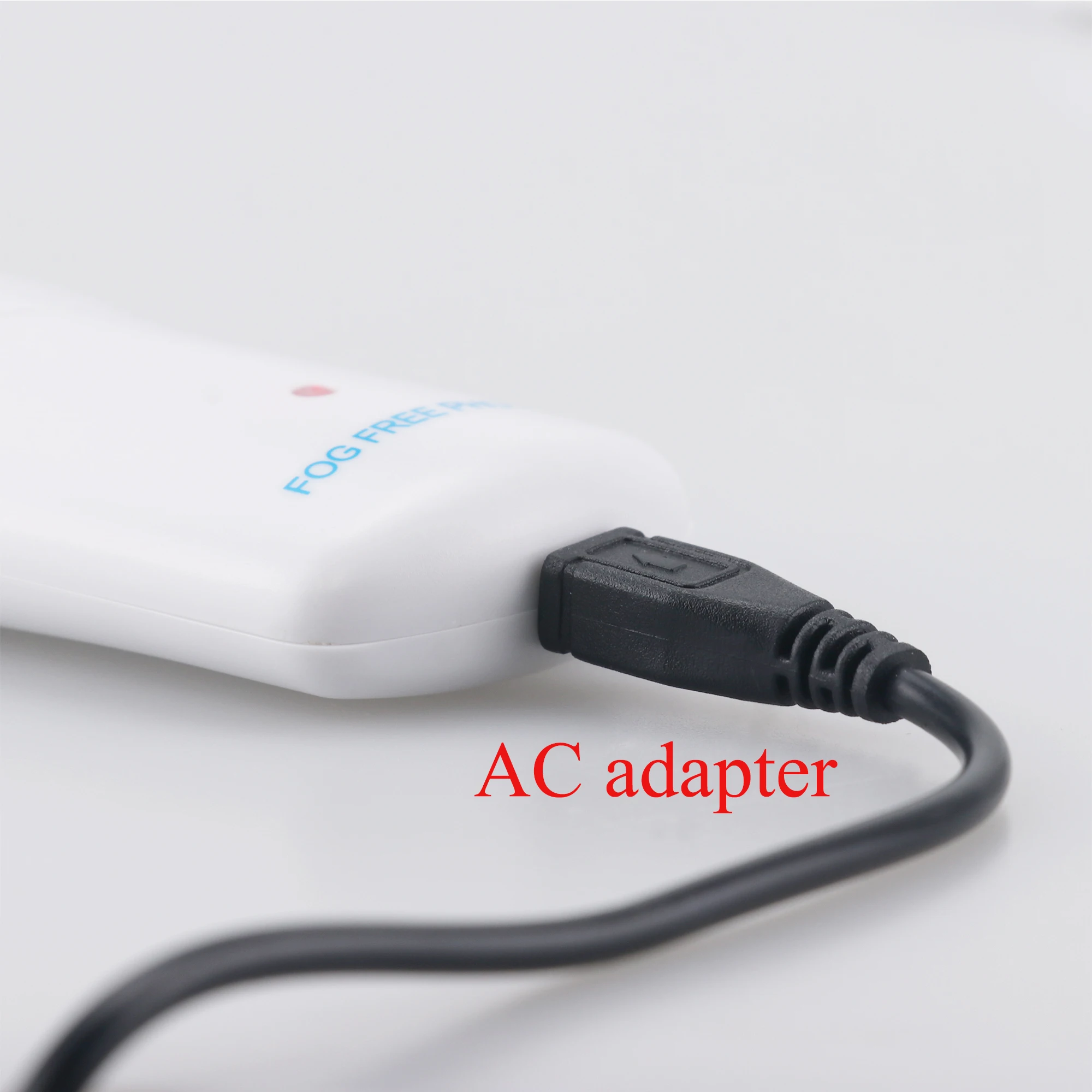

2) Connect the AC adapter with the bottom socket of the device properly, and insert the AC USB adapter plug to the power socket.
3) The red indicator is lighted when the device is charging, it means charging has finished when the red indictor turns green.

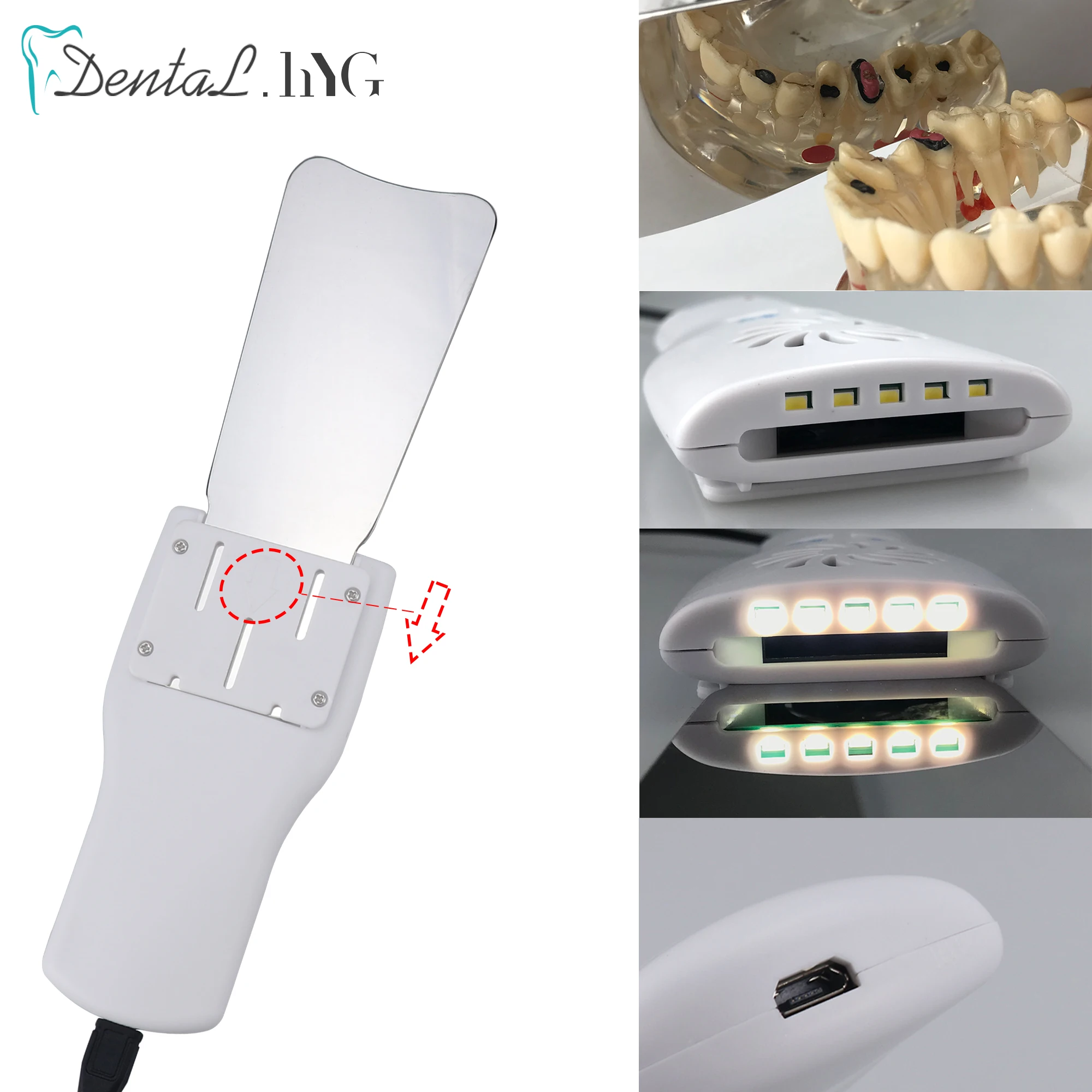

3)Insert the mirror to the back socket of the main unit, push the fan button and breeze the mirror, the mirror defogging, ifthe lightness is not enough.
4)The device will shutdown automatically after
3 minutes without oeration.
5)Pull the mirror out the main unit, disinfect and clean the device according to the user manual.

5. DISINFECTION, CLEANINGAND STERILIZATION
1)The main unit and the mirror must be cleaned, disinfected and sterilized before each use to prevent any contamination.Thisconcerns the first use as well as the subsequent uses.
2)Aftereachuse,allthe objectsthatwereincontact
with infectious agents should be cleaned using towelsimpregnatedwithadisinfectingand detergentsolution(a bactericidal fungicidal and aldehyde free solution). Useofchemicalagents may cause damageto the equipment.
3)The mirror must be sterilized betweentreatments by autoclave 134℃
4)The main unit cannot be autoclaved.

6. TRANSPORTATIONAND STORAGE
1)Lay lightly duringtransportation, avoidstrong shake
2)Storage condition:
a. Ambiance temperature: -10 ~55℃
b. Relative humidity: <85%

7. WARRANTY
Manufacturer warrants its products to the original purchaser against defects in material and workmanship undernormal practices ofinstallation, use:and servicing.
This unit is guaranteed forits designated use against original defects in materials and workmanship for
a period of 12 months from date of purchasing.
