DESCRIPTION

Brings Supercomputer Performance To The Edge In A Small Form Factor SOM

At 70 mm x 45 mm, Jetson Xavier NX packs the power of the NVIDIA Xavier SoC into a module the size of a Jetson Nano. This compact module combines exceptional performance and power advantage with a rich set of IOs—from high-speed CSI and PCIe to low-speed I2Cs and GPIOs. Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 51GB/s of memory bandwidth, video encoded, and decode, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W. This leaves more of your power budget for sensors and peripherals, while still letting you use the entire NVIDIA software stack. You now have the performance to run all modern AI networks and frameworks with accelerated libraries for deep learning, computer vision, computer graphics, multimedia, and more.

Jetson Xavier NX is perfect for high-performance AI systems like commercial robots, medical instruments, smart cameras, high-resolution sensors, automated optical inspection, smart factories, and other AIoT embedded systems.

GPU

NVIDIA Volta architecture
with 384 NVIDIA CUDA cores and 48 Tensor cores

CPU

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU
6 MB L2 + 4 MB L3

MEMORY

8 GB 128-bit LPDDR4x 51.2GB/s

STORAGE

microSD (Card not included)

POWER

10W | 15W

PCIE

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CAMERA

2x MIPI CSI-2 D-PHY lanes

VIDEO ENCODE

2x 4Kp30 | 6x 1080p 60 | 14x 1080p30 (H.265/H.264)

VIDEO DECODE

2x 4Kp60 | 4x 4Kp30 | 12x 1080p60 | 32x 1080p30 (H.265)
2x 4Kp30 | 6x 1080p60 |16x 1080p30 (H.264)

DISPLAY

HDMI and DP

DLA

2x NVDLA Engines

VISION ACCELERATOR

7-Way VLIW Vision Processor

CONNECTIVITY

Gigabit Ethernet, M.2 Key E (WiFi/BT included), M.2 Key M (NVMe)

USB

4x USB 3.1, USB 2.0 Micro-B

OTHERS

GPIO, I2C, I2S, SPI, UART

MECHANICAL

103 mm x 90.5 mm x 34 mm

JETSON NANO

JETSON TX2

JETSON XAVIER NX

JETSON AGX XAVIER

NVIDIA Maxwell architecture
128 NVIDIA CUDA cores

NVIDIA Pascal architecture
256 NVIDIA CUDA cores

NVIDIA Volta architecture
384 NVIDIA CUDA cores
48 Tensor cores

NVIDIA Volta architecture
512 NVIDIA CUDA cores
64 Tensor cores

MODULE

69.6×45mm
260-pin edge connector

87×50mm
400-pin connector
with Thermal Transfer Plate

69.5×45mm
260-pin edge connector

100×87mm
699-pin connector
Integrated Thermal Transfer Plate

DEVELOPER KIT

100×80×29mm

170×170×15.6mm

103×90.5×31mm

105×105×65mm

As An NVIDIA Official Authorized Partner, Waveshare Is Capable Of Providing Genuine Products And Reliable Tech Support

PACKAGE CONTENT

Weight: 0.768 kg

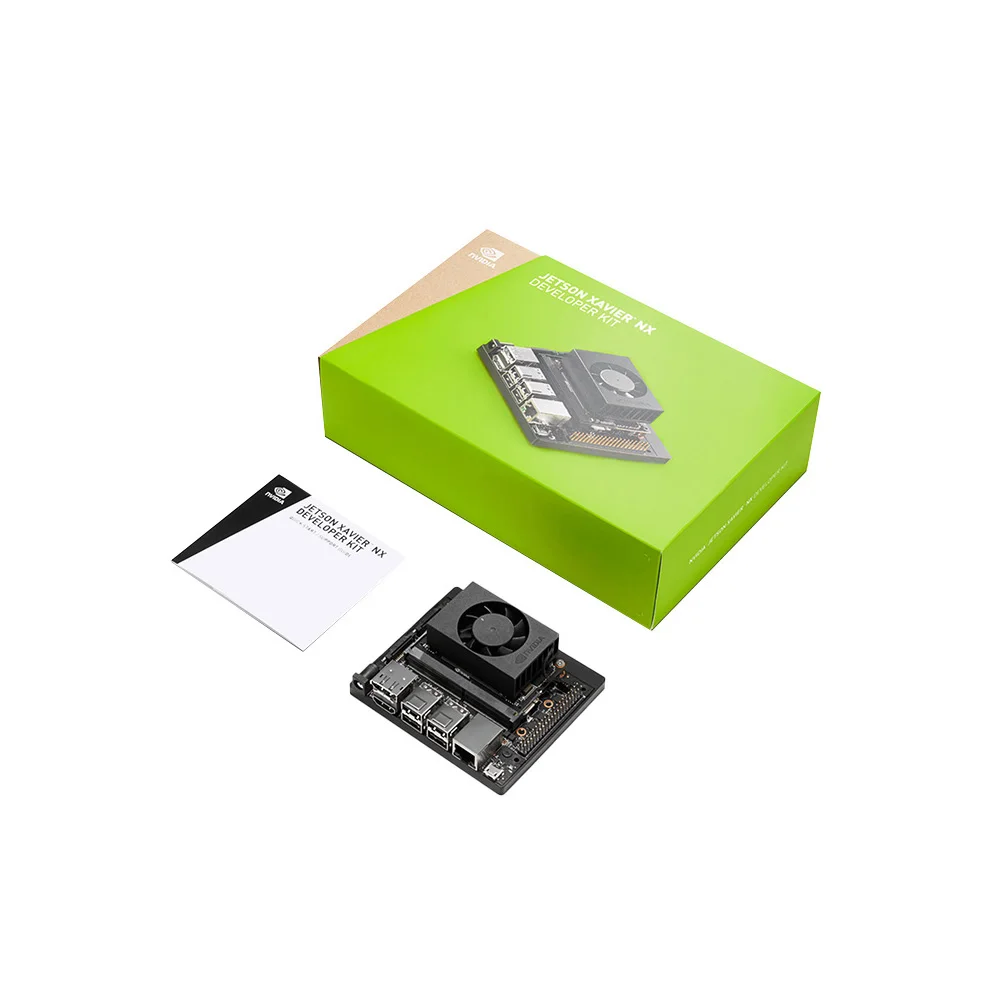

Jetson Xavier NX Developer Kit
